Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11A-MASA-KT-2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5100K/month
P/N: |
ARJ11A-MASA-KT-2 |
Gender: |
Female |
Port: |
1x1,single,custom |
Application: |
HUB, PC Card, Switch Etc |
Speed: |
10 Base-t |
OEM/ODM: |
Available |
P/N: |
ARJ11A-MASA-KT-2 |
Gender: |
Female |
Port: |
1x1,single,custom |
Application: |
HUB, PC Card, Switch Etc |
Speed: |
10 Base-t |
OEM/ODM: |
Available |
Description:

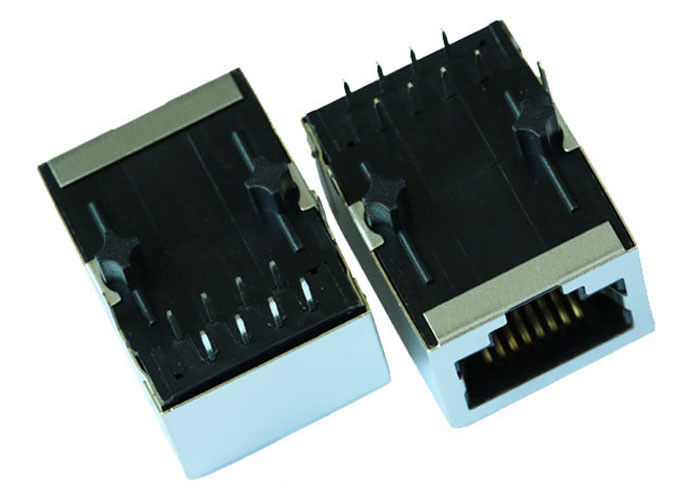

1X1 Tab-down 10/100M RJ45 connector without led, dimension: 21.59X16.26X13.84MM
| Pin to pin ARJ11A-MASA-KT-2 | |||
| Part Number: | ARJ11A-MASA-KT-2 | Height(mm) | 13.84 |
| Cross Compatible; | LPJxxxNL | Length(mm) | 21.59 |
| Manufacturer | LINK-PP | Width(mm) | 16.26 |
| Speed: | 10 Base-T | Number of Port: | 1 |
| LED | WITHOUT | Turns Ratio (Np:Ns) | 1:1; 1:1 |
1. 1X1 Port Tab-down rj45 connector
2. Switch, Router, PC rj45 jack
3. Application: HUB, PC card, Switch
4. 10/100M RJ45 Jack
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
1100 staff,
100% test
Flexible delivery time
