Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11A-MDSO-MU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4KK / month
P / N: |
ARJ11A-MDSO-MU2 |
Speed: |
10 Base-T |
PCB Mounting Orientation: |
Side Entry (Right Angle),90 Degree |
Port: |
Single Port |
Samples: |
Available |
Application: |
HUB, PC Card, Switch, Router |
P / N: |
ARJ11A-MDSO-MU2 |
Speed: |
10 Base-T |
PCB Mounting Orientation: |
Side Entry (Right Angle),90 Degree |
Port: |
Single Port |
Samples: |
Available |
Application: |
HUB, PC Card, Switch, Router |

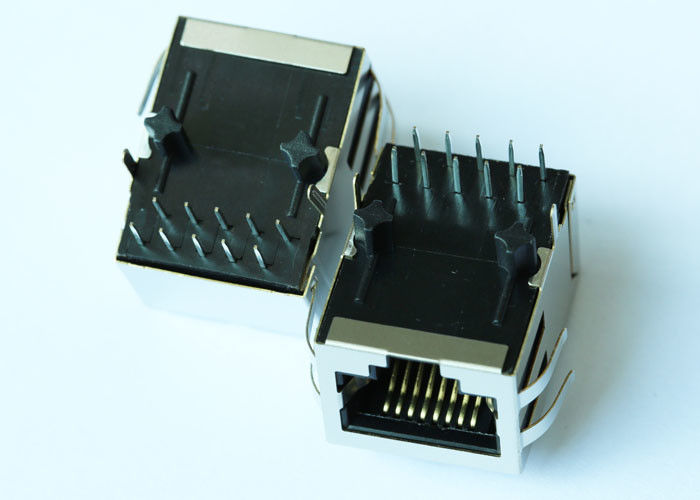

1. 10 Base-T RJ45 Jack Without LED
2. Tab Down single Port RJ45 Female Jack
3. Shileded RJ45 connector
4. Application:HUB, PC card, Switch, Router
5. Cross rf : ARJ11A-MDSO-MU2 => LPJxxxNL
| Specifications | ARJ11A-MDSO-MU2 |
| Cross Compatible | LPJxxxNL |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Height(mm) | 13.84 mm |
| Length(mm) | 21.59 mm |
| Width(mm) | 16.26 mm |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Connector Type | JACK |
| Application | GENERAL PURPOSE |
Description:
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
1. Security Gateway
2. Network Tv-set Box
3. proper digital cable tv stb
4. Fiber network switch
5.ATM switches
Competitive Advantage:
16 years production experience,
1100 staff,
100% test
Flexible delivery time
3. Magnetic RJ45 Jack Main customer:
TEXAS INTRUMENTS SAMSUNG GE SONY CANNON FLEXTRONICS
LINK-PP are the best supplier of Texas Instruments ,Samsung, and General Electric. Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0
you will look at our logo: "LINK-PP" on BeagleBone Black.
BeagleBone Black is a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists. Boot Linux in under 10-seconds and get started on Sitara™ AM335x ARM Cortex-A8 processor development in less than 5 minutes with just a single USB cable.
