Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

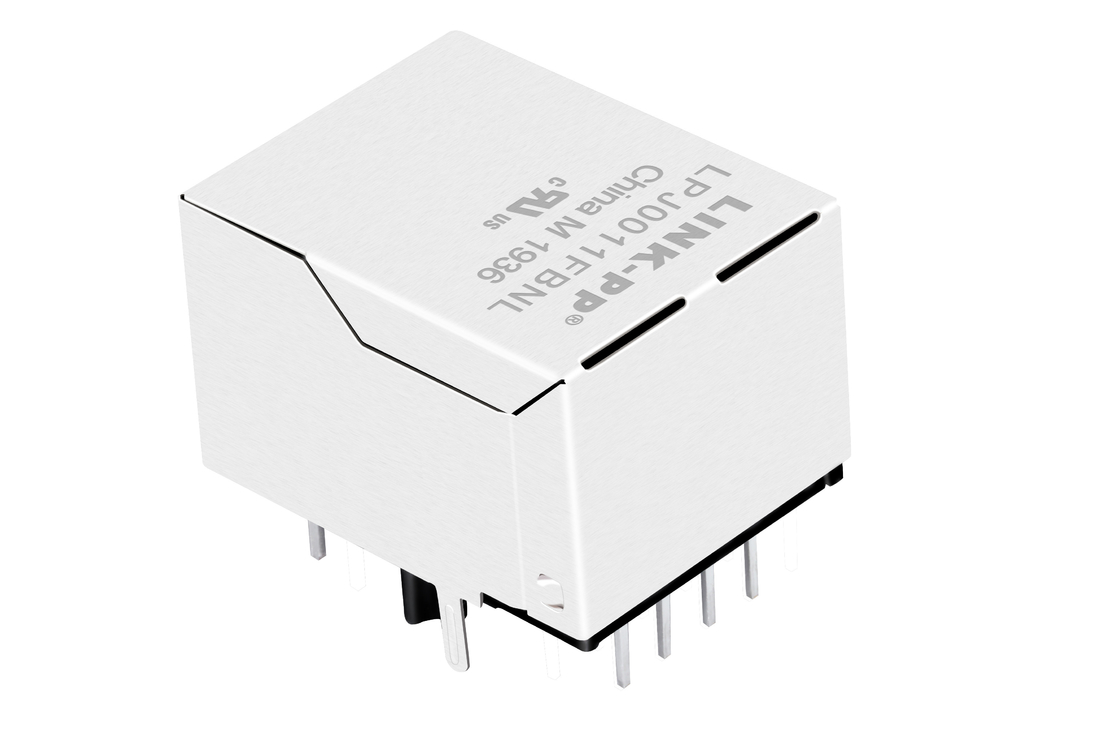

Model Number: LPJ0011FBNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Discounted
Packaging Details: 50PCS/tray;1200PCS/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Part Number: |
LPJ0011FBNL |
Type: |
Magnetic RJ45 Jack |
Speed: |
10/100 Base-T |
Indicator: |
With LEDs |
Mounting Type: |
THT |
Free Samples: |
Available |
Part Number: |
LPJ0011FBNL |
Type: |
Magnetic RJ45 Jack |
Speed: |
10/100 Base-T |
Indicator: |
With LEDs |
Mounting Type: |
THT |
Free Samples: |
Available |
| NOTES: | |
| 1. Designed to support applications, such as SOHO(ADSL modems), LAN-on Motherboard(LOM),hub and Switches. | |
| 2. Meets IEEE 802.3 specification | |
| 3. Connector Materials: | |
| Housing: Thermoplastic PBT+30%G.F UL94V-0 | |
| Contact: Phosphor Bronze C5210R-EH Thickness=0.35mm | |
| Pins: Brass C2680R-H Thickness=0.35mm | |
| Shield: SUS 201-1/2H Thickness=0.2mm | |
| Contact plating: Gold 6 micro-inches min.In contact area. | |
| 4. Wave solder tip temperature: 265℃ Max, 5 Sec Max | |
| 5. UL Certification: File Number E484635 |
| Emitting Color | λp(nm) | VF@IF=20mA | IR @VR=5V |
| Green | 570 | 1.8~2.6V | 10μA max |
| Yellow | 585 | 1.8~2.6V | 10μA max |
