Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJE17208CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
5569381-1 |
Cross PN: |
LPJE17208CNL |
Family: |
Rj45 No Magnetics |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Cross Rf: |
LPJE17208CNL = 5569381-1 |
Spec: |
5569381-1 |
Cross PN: |
LPJE17208CNL |
Family: |
Rj45 No Magnetics |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Cross Rf: |
LPJE17208CNL = 5569381-1 |
Product parameters:

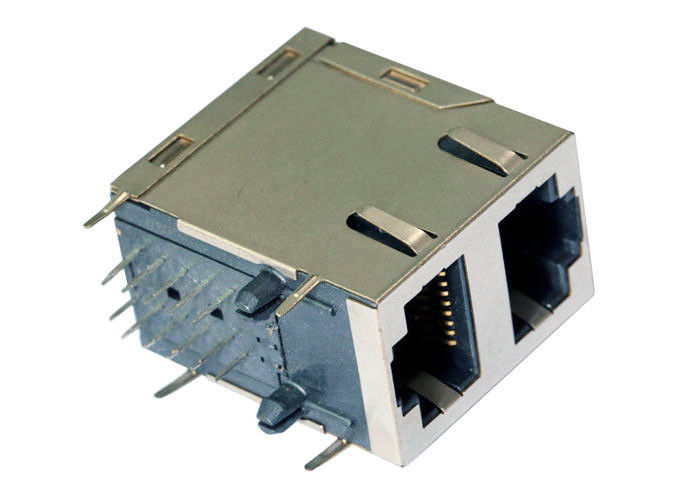

| 2x1 RJ45 Connector without Integrated Magnetics,Without LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJE17208CNL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | NO |
| Diodes | NO DIODES |
| LED Option | WITHOUT |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.00 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.122 |
| Package Length (mm) | 28.50 |
| Package Width (Inches) | 0.680 |
| Package Width (mm) | 17.28 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | without Magnetics |
| Temperature | - 40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
