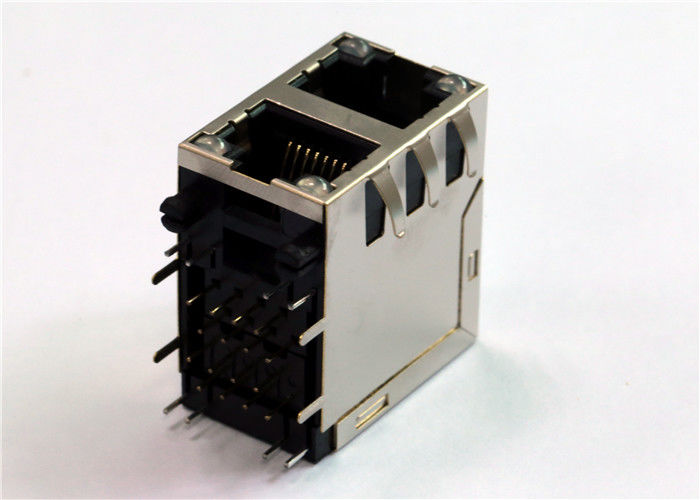

DA1T101J1 10/100/1000 Base-T RJ45 2x1 Integrated Magnetics Connector

China DA1T101J1 10/100/1000 Base-T RJ45 2x1 Integrated Magnetics Connector supplier
DA1T101J1 10/100/1000 Base-T RJ45 2x1 Integrated Magnetics Connector supplier DA1T101J1 10/100/1000 Base-T RJ45 2x1 Integrated Magnetics Connector supplier

Large Image :  DA1T101J1 10/100/1000 Base-T RJ45 2x1 Integrated Magnetics Connector

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: LPJG17561A4NL

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2K, 20K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 6000K/month
Contact Now
Detailed Product Description
Spec: DA1T101J1 Bothhand Port: 2x1 Female Rj45
Ethernet: Gigabit I/O Family: Magnetic Integrated Jack
Mounting: Side Entry (Right Angle) Cross Ref: LPJG17561A4NL = DA1T101J1

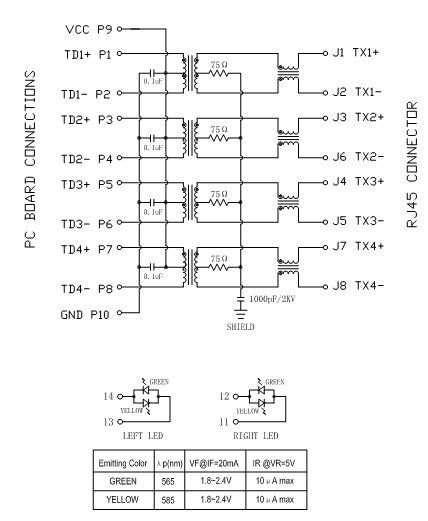

Cross DA1T101J1 10/100/1000 Base-T RJ45 2x1 PCB Layout

LPJG17561A4NL 2x1 Ports Gigabit Female Socket Rj45
Complies with requirement of IEEE 802.3ab standards.
RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 1000 BASE transmission over UTP-5 cable.
Compliance with ROHS requirements.
Operating temperature range:  -40℃ to +85℃

DA1T101J1 10/100/1000 Base-T RJ45 2x1 Integrated Magnetics Connector 0

DA1T101J1 10/100/1000 Base-T RJ45 2x1 Integrated Magnetics Connector 1
