LMJ2058811001CNL Magnetic RJ45 Jack 10/100Base-Tx Shielded LPJ1011ABNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LMJ2058811001CNL (LPJ1011ABNL)

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000K/month

Get Best Price
Highlight:

100Base-Tx Magnetic RJ45 Jack

,

Shielded RJ45 Connector with Magnetics

,

RJ45 Integrated Magnetics Connector

Types:
RJ45 Integrated Magnetics Connector (ICM)
Connector Pinout Layout:
8P8C
Locking System:
Top Latch
Speed:
10/100 BASE-TX
Electrical Mounting:
THT
Application:
HUB, PC Card, Switch, Router, PC Mainboard
Types:
RJ45 Integrated Magnetics Connector (ICM)
Connector Pinout Layout:
8P8C
Locking System:
Top Latch
Speed:
10/100 BASE-TX
Electrical Mounting:
THT
Application:
HUB, PC Card, Switch, Router, PC Mainboard

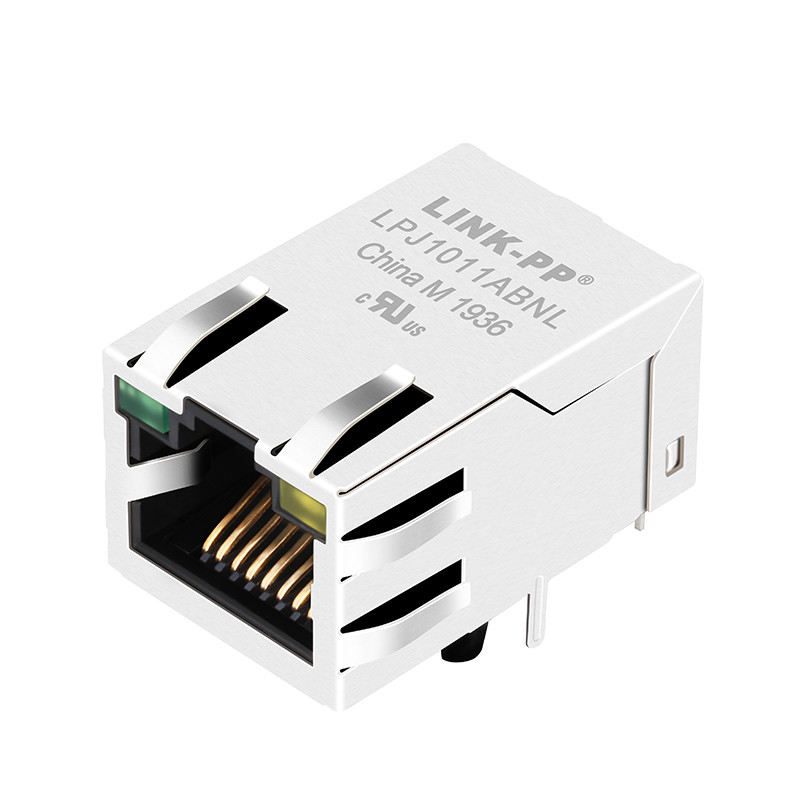

LMJ2058811001CNL Magnetic RJ45 Jack 10/100Base-Tx Shielded LPJ1011ABNL

10/100 BASE-TX RJ45 1X1 Tab-up With LED Integrated Magnetics Connector



Quick Details of Magnetic RJ45 Jack:

  • Product Name: RJ45 Integrated Connector Modules
  • Types: RJ45 1x1 8-Pin with Internal Magnetic
  • Number of Ports: 1x1 Single Port
  • Speed: 10/100 Base-T
  • Mounting Type: Through Hole
  • Orientation: Angled 90°
  • Right Angle rj45 plugs with Transformer Integrated
  • Features 1: With Isolation Transformer
  • Features 2: Shielded with EMI Tags
  • Features 3: With Green Yellow LED Option
  • RoHS Peak Wave Solder Temperature Rating Is 260°C
  • Suitable for Cat5 and Cat6 Fast Ethernet Cable or Better UTP
  • Internal Magnetics: 100% Electronically Tested for Hipot and Functionality
  • Plating thickness: 15µm

Electrical Specification @ 25±5℃ :

Overview

RJ45 Connector with 10/100 Base-T Integrated Magnetics

TR (@100KHz, 0.1V) TX =1CT:1CT ± 3%
RX =1CT:1CT ± 3%
OCL (@100KHz, 100mV, 8mA, DC Bias) PINS: (P1,P2),(P7,P8) = 350uH MIN
HIPOT

PINS (P1, P3, P2) TO (J1, J2) =1500VAC FOR 60 SECONDS

PINS (P7, P6, P8) TO (J3, J6) =1500VAC FOR 60 SECONDS

INSERTION LOSS -1.0dB MAX @1.0MHz To 65MHz
RETURN LOSS -20dB MIN @1MHz To 10MHz
-16dB MIN @10MHz To 30MHz
-12dB MIN @30MHz To 60MHz
-10dB MIN @0MHz To 100MHz
CROSS TALK -40dB MIN @1MHz To 30MHz
-35dB MIN @30MHz To 60MHz
-30dB MIN @60MHz To 100MHz
COMMON TO COMMON MODE REJECTION -30dB MIN @1MHz To 50MHz
-20dB MIN @50MHz To 150MHz
CAPACITOR 1000pF ± 25% 2KV
RESISTANCE 750HMS ± 20%
RESISTANCE OF COIL 1.80HMS MAX, 0.250HMS MIN
LEFT LED COLOR GREEN
RIGHT LED COLOR YELLOW
Operating Temperature 0-70°C



RJ45 Datasheet Download:

LPJ1011ABNL.pdf

100Base-T RJ45 Connector: Electrical Performance Excellence

Explore LINK-PP RJ45 with Magnetics series designed to meet the highest industry standards. Our Magnetic RJ45 Jacks provide excellent electrical performance and meet IEEE802.3 specifications and 350uH Minimum OCL with 8mA Bias Current. Trust in LINK-PP RJ45 connectors for excellence in electrical performance, EMI suppression, temperature resilience, and premium material composition.

High-Performance LMJ2058811001CNL (LPJ1011ABNL) provides maximum EMI suppression for optimal signal integrity.
The Integrated Magnetics Connector has strong temperature adaptability and reliability under different environmental conditions. Storage temperature range is -25°C to +85°C, operating temperature range is 0°C to +70°C.



Premium Material Specification:
1. Shield: Made of high-quality 0.2mm thick brass. LMJ2058811001CNL Single Port RJ45 Connector features nickel plating for enhanced durability and conductivity.
2. Housing: The housing is made of PBT (polybutylene terephthalate) with 30% fiberglass content and meets UL94V-0 flame retardant standards.
3. Contact: Contacts are constructed from 0.35mm thick phosphor bronze and are selectively gold-plated to ensure superior electrical performance and corrosion resistance.

Details of RJ45 LED Connector:

LMJ2058811001CNL Magnetic RJ45 Jack 10/100Base-Tx Shielded LPJ1011ABNL 0
