LP5015ANL 1000 Base-T SMT Magnetic Discrete Toroidal Transformer

China LP5015ANL 1000 Base-T SMT Magnetic Discrete Toroidal Transformer supplier
LP5015ANL 1000 Base-T SMT Magnetic Discrete Toroidal Transformer supplier LP5015ANL 1000 Base-T SMT Magnetic Discrete Toroidal Transformer supplier LP5015ANL 1000 Base-T SMT Magnetic Discrete Toroidal Transformer supplier

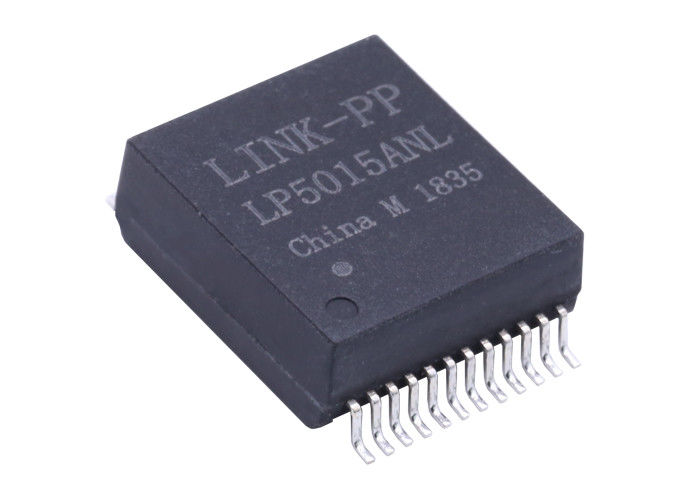

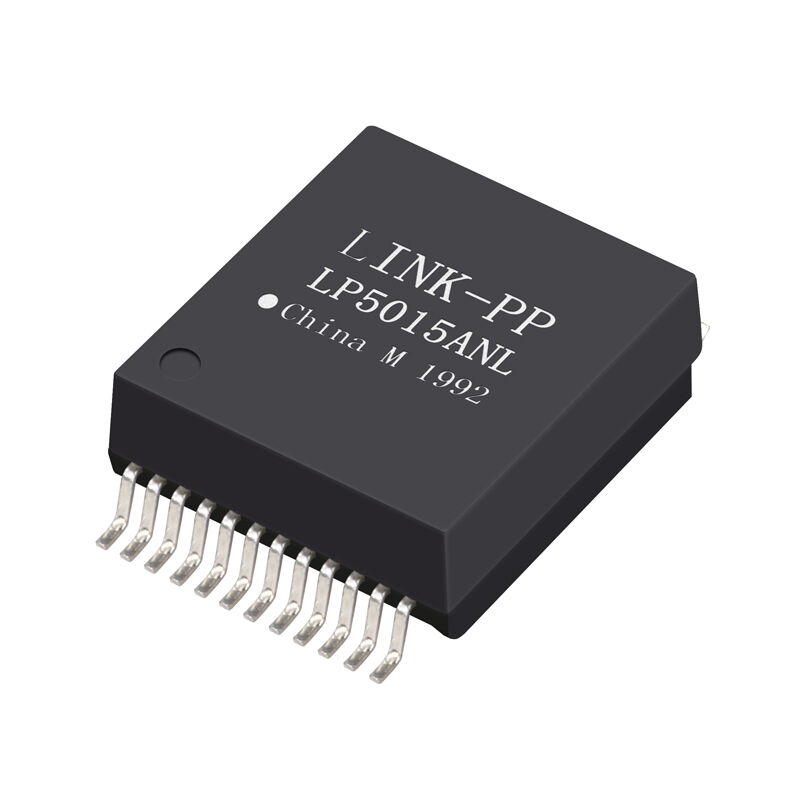

Large Image :  LP5015ANL 1000 Base-T SMT Magnetic Discrete Toroidal Transformer

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP5015ANL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP5015ANL P/N: LP5015ANL
Ethernet: 1000Mbpsx1 Mounting: SMD
Size: 13.64x18.80x5.72 Mm Samples: Free

LP5015ANL 1000 Base-T SMT Magnetic Discrete Toroidal Transformer
  1. Coil Number: Autotransformer
  2. Isolation Voltage:1500Vrms
  3. 1000 Base-T SMT Magnetic
  4. Coil Structure: Toroidal
  5. 24Pins Gigabit Magnetic Discrete Toroidal Transformer
  6. 1000 Base-T SMT Magnetic Discrete Toroidal Transformer For SDH
LINK-PP Part Number LP5015ANL
Belfuse Part Number S558-5999-AB-F
Speed 1000 BASE-T
Number of Ports SINGLE
Application Lan Ethernet
Package SMD
PIN number 24
Temperature - 40 TO + 85
Package Height (mm) 5.72
Package Length (mm) 18.80
Package Width (mm) 13.64



Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
