Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP5015ANL
Document: LP5015ANL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$0.65
Packaging Details: T&R
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
P/N: |
LP5015ANL |
Size: |
13.64x18.80x5.72mm |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
Non |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
P/N: |
LP5015ANL |
Size: |
13.64x18.80x5.72mm |
Data Rate: |
1000Base-T |
Number Of Channels/Ports: |
Single |
PoE: |
Non |
Mounting Type: |
SMT |
Turns Ratio: |
1:1 |
Operating Temperature Range: |
-40°C To +85°C |
Source the LP5015ANL 1000 Base-T Gigabit Ethernet Transformer Module by LINK-PP. Industrial grade SMD LAN magnetics with 1500Vrms isolation. UL & RoHS compliant.

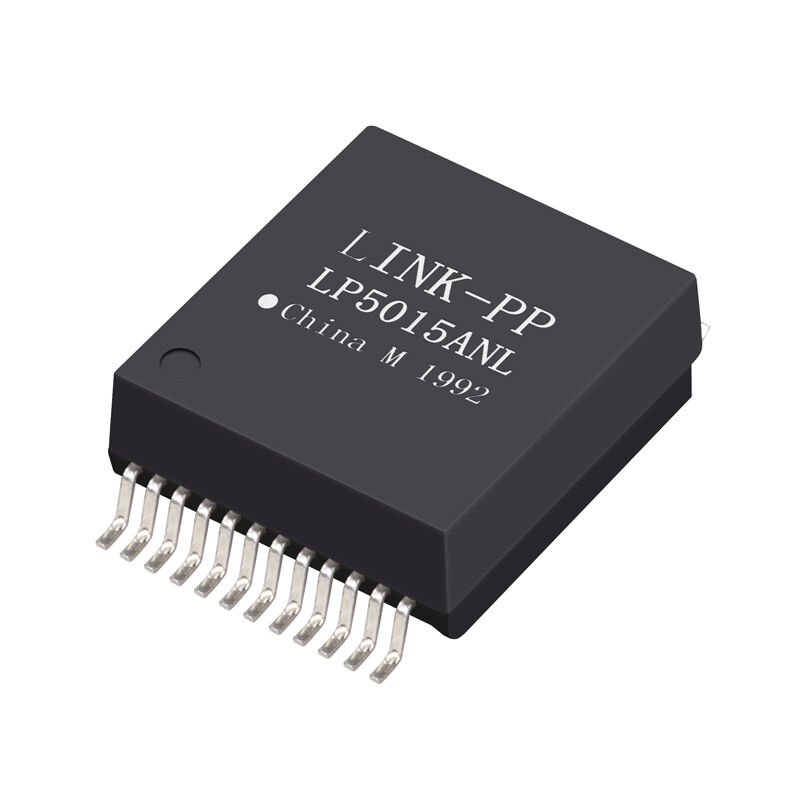

The LP5015ANL, manufactured by LINK-PP, is a premium-grade Single Port Gigabit Ethernet Transformer designed to meet the rigorous demands of modern networking equipment. As a highly reliable SMD LAN Isolation Module, it fully complies with IEEE 802.3 standards for 10/100/1000BASE-T applications. Featuring a robust 24-pin surface mount (SMD/SMT) package and industrial-grade operating temperature capabilities (-40C to +85C), the LP5015ANL ensures optimal signal integrity, excellent EMI suppression, and high-voltage isolation for mission-critical network communications.
- High-Performance Gigabit Connectivity: 4-channel design tailored for 1000 Base-T transmission.
- Industrial Grade Reliability: Operates seamlessly in extreme environments from -40C to +85C.
- Safety & Compliance: 1500Vrms Hipot isolation, UL E484635 certified, and RoHS compliant.
- Optimized for Automated Manufacturing: SMD-24 package compatible with 250C peak reflow soldering.
| Part Number | LP5015ANL |
| Manufacturer | LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Product Name | 1000 Base-T Transformer Module |
| Product Type | Single Port Gigabit Ethernet Transformer / SMD LAN Isolation Module |
| Network Standard | IEEE 802.3 10/100/1000BASE-T |
| Port Configuration | Single Port (4 Channels for Gigabit) |
| Package Type | SMD-24 |
| Mounting Style | Surface Mount (SMD/SMT) |
| Pin Count | 24 Pins (Suggested Pad Layout provided in datasheet) |
| Operating Temperature | -40C to +85C (Industrial Grade) |
| Compliance | RoHS (2011/65/EU) |
| Safety Certification |
UL File No. E484635 |
| Parameters | Requirements | Test Conditions |
| Turns Ratio | 1CT:1CT +/- 5% | Transmitter and Receiver |
| Open Circuit Inductance (OCL) | 350uH Minimum | at 100KHz, 100mV with 8mA DC Bias |
| Insertion Loss | -1.2 dB Maximum | 1-100MHz |
| Return Loss | -16 dB Minimum | 1-30MHz |
| Return Loss | -14 dB Minimum | 30-60MHz |
| Return Loss | -12 dB Minimum | 60-80MHz |
| Return Loss | -10 dB Minimum | 80-100MHz |
| Crosstalk | -30 dB Minimum | 1-100MHz |
| Common Mode Rejection (CMR) | -30 dB Minimum | 1-100MHz |
| Isolation Voltage (Hipot) | 1500 Vrms |
The LP5015ANL, manufactured by LINK-PP, is a premium-grade Single Port Gigabit Ethernet Transformer designed to meet the rigorous demands of modern networking equipment. As a highly reliable SMD LAN Isolation Module, it fully complies with IEEE 802.3 standards for 10/100/1000BASE-T applications. Featuring a robust 24-pin surface mount (SMD/SMT) package and industrial-grade operating temperature capabilities (-40C to +85C), the LP5015ANL ensures optimal signal integrity, excellent EMI suppression, and high-voltage isolation for mission-critical network communications.
| Parameter | Specification |
|---|---|
| Package Type | SMD-24 |
| Mounting Method | Surface Mount |
| Pin Count | 24 |
| PCB Layout | Recommended Pad Layout Available |
| Maximum Reflow Temperature | 250°C for 5 Seconds |
The LP5015ANL is installed between the Ethernet PHY and RJ45 connector to provide magnetic isolation and signal conditioning.
Ethernet PHY
│
Differential Pairs
│
LP5015ANL
1000 Base-T Transformer Module
│
RJ45 Connector
│
CAT5e / CAT6 Cable
The transformer performs:
The LP5015ANL is a Single Port Gigabit Ethernet Transformer used between the Ethernet PHY and RJ45 connector to provide galvanic isolation, impedance matching, signal coupling, and EMI suppression.
Yes. It is designed for IEEE 802.3 compliant 10/100/1000BASE-T Ethernet interfaces.
The transformer features a 1CT:1CT ±5% turns ratio, providing balanced differential signaling for Gigabit Ethernet communication.
A minimum 350μH Open Circuit Inductance ensures compliance with Ethernet PHY requirements, improves low-frequency performance, and helps maintain stable signal transmission.
The module offers 1500Vrms dielectric isolation, protecting Ethernet equipment from electrical transients and ground potential differences.
Typical applications include SOHO ADSL modems, LAN-on-Motherboard (LOM), Ethernet switches, routers, industrial controllers, IP cameras, wireless access points, IoT gateways, and embedded networking equipment.
Yes. Its -40°C to +85°C operating temperature range makes it suitable for industrial automation, factory networking, transportation, and other harsh-environment Ethernet applications.
Yes. The LP5015ANL complies with RoHS 2011/65/EU environmental regulations and is UL Recognized under File No. E484635.
