Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP44805NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |

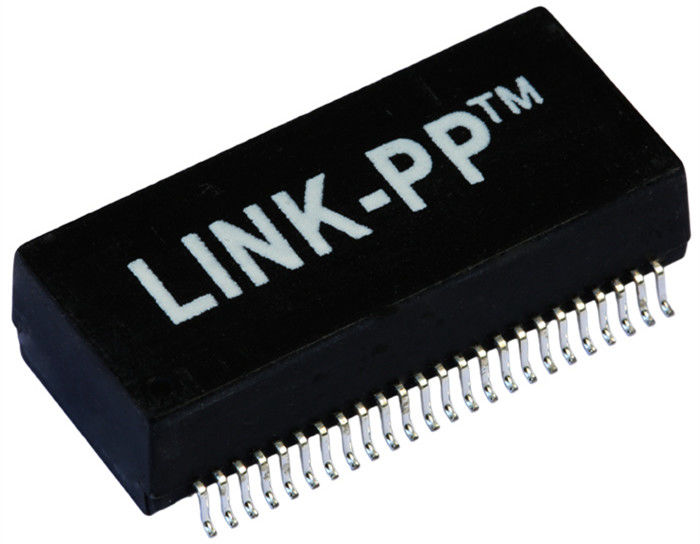

LP44805NL |
P/N: |
LP44805NL |
Ethernet: |
4x 10/100Mbps Power |
Measure: |
32.80x17.60x7.30mm |
Mounting: |
SMD |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
LP44805NL |
P/N: |
LP44805NL |
Ethernet: |
4x 10/100Mbps Power |
Measure: |
32.80x17.60x7.30mm |
Mounting: |
SMD |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
1. Coil Number: Autotransformer
2. Isolation Voltage:1500Vrms
3.Type:SMT LP44805NL
4. 4 Ports Magnetics Power Module
5. 10/100M Lan Transformer with POE/POE+
Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
Chip side to Line side
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
