Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP2019ANLE
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
LP2019ANLE |
P/N: |
LP2019ANLE |
Ethernet: |
10/100 Power |
Measure: |
12.70x9.30x6.20mm |
Mounting: |
SMD |
Samples: |
Free |
Specifications: |
LP2019ANLE |
P/N: |
LP2019ANLE |
Ethernet: |
10/100 Power |
Measure: |
12.70x9.30x6.20mm |
Mounting: |
SMD |
Samples: |
Free |
1. Coil Number: Autotransformer
2. Isolation Voltage:1500Vrms

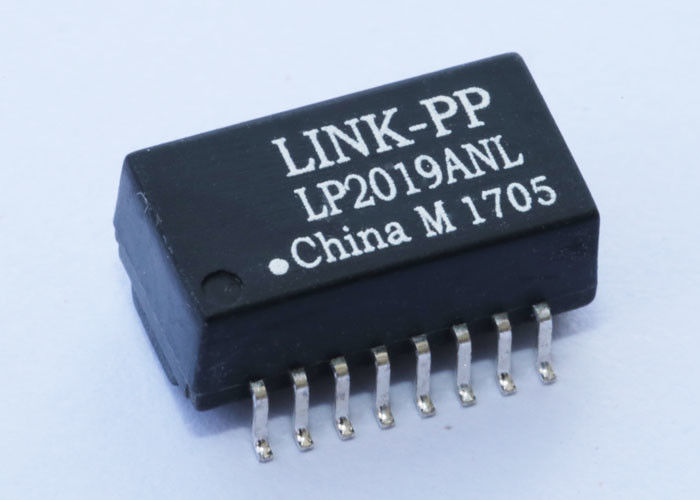

3.Type:SMT LP2019ANLE POE Transformer
4. Coil Structure: Toroidal
|
Electrical Specifications (25): 1. Turns Ratio50KHz, 0.5V Chip side: Line side=1CT: 1CT+_2% 2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias: Chip side: 350uH Min 3. Insertion Loss1-100MHz: -1.4dB Max 4. Return Loss1-30MHz: -16dB Min 40MHz: -14.4dB Min 50MHz: -13.1dB Min 60-80MHz: -12dB Min 100MHz: -10dB Min 5. Differential to Common Mode Rejection: 30MHz: -45dB Min 60MHz: -40dB Min 100MHz: -35dB Min 6. Crosstalk30MHz: -40dB Min 60MHz: -35dB Min 100MHz: -30dB Min 7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec Chip side to Line side |
|
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Other Part Number :
LP2019ANL
LP2019ANLE
LP2019NL
LP2019NLE
