LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD

China LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD supplier
LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD supplier LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD supplier LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD supplier

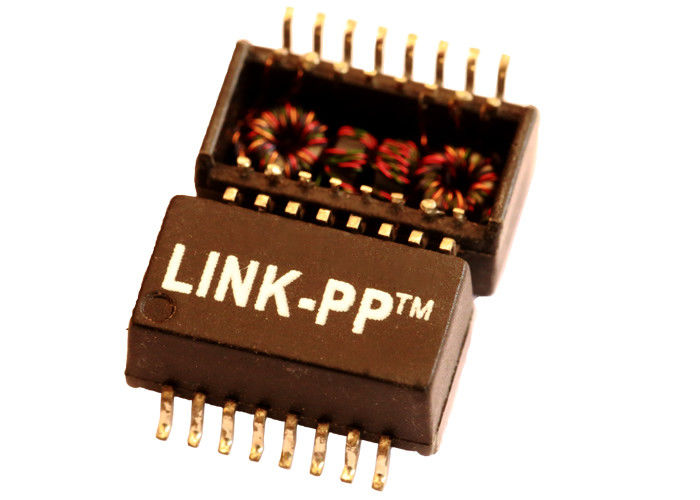

Large Image :  LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1193NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1193NL P/N: LP1193NL
Measure: 12.8x9.45x5.45mm Mounting: SMD
Ethernet: 1x10/100Base-Tx Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD

  • Coil Number: Autotransformer
  •  Isolation Voltage:1500Vrms
  • Type: Surface Mounting
  • Coil Structure: Toroidal
  • 10/100 Base-T Single Port Transformer Modules


Electrical Specification @25℃
1.Inductance(100KHz,100mV,8mADC):
350uH Min,16-14;11-9,Lp,0℃ to 70℃
2.Turns Ratio(±2%):
(1-3):(16:14)=1:1; (6-8):(11-9)=1:1
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(dB Min):
1-30MHz:-20.5 30-60MHz:-17
60-80MHz:-14 80-100MHz:-12
5.Crosstalk:
1-100MHz:-40dB Min
6.CMRR(dB Min):
1-100MHz:-40 100-500MHz:-20.5
7.Isolation Voltage:1500Vrms
8.Operating Temperature Range:0~70℃ or -40~+85℃

LP1193NL Network Magnetic Transformers XFRMR 10/100B-TX SMD
