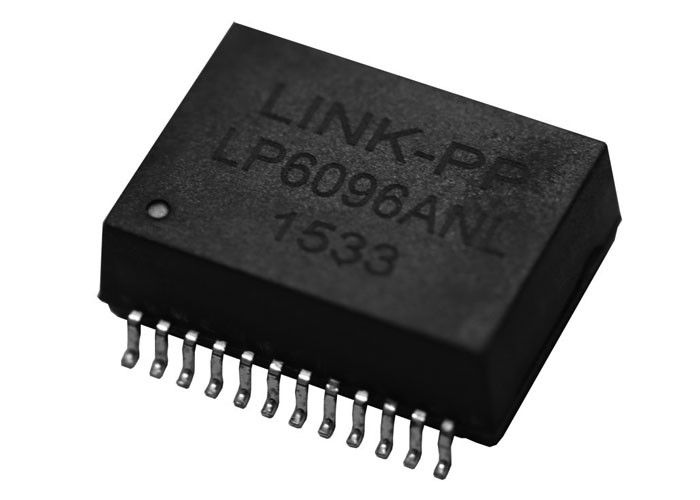

ETH1-460L Gigabit POE+ Transformer 10/100/1000Base-T Power Over LP6096ANL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,REACH,ISO

Model Number: ETH1-460L

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

ETH1-460L

,

1000Base-T PoE+ Magnetics

,

ETH1-460L Power Over Ethernet Transformer

Transformer Type:
ETH1-460L Signal Path Transformers
Turns Ratio:
1 : 1 Transmitter, 1 : 1 Receiver
Standard:
IEEE 802.3at2009 And IEEE 802.3.bt
Open-Circuit Inductance:
350µH
Ambient Temperature Range:
-40°C To +85°C
Offset Current:
35mA At 25°C
Winding To Winding Isolation:
1500 Vrms
Isolation Voltage:
1.5 KV
Transformer Type:
ETH1-460L Signal Path Transformers
Turns Ratio:
1 : 1 Transmitter, 1 : 1 Receiver
Standard:
IEEE 802.3at2009 And IEEE 802.3.bt
Open-Circuit Inductance:
350µH
Ambient Temperature Range:
-40°C To +85°C
Offset Current:
35mA At 25°C
Winding To Winding Isolation:
1500 Vrms
Isolation Voltage:
1.5 KV
ETH1-460L Gigabit POE+ Transformer 10/100/1000Base-T Power Over LP6096ANL

ETH1-460L PoE Signal Path Transformer 10/100/1000Base-T



Key Features of Gigabit Power Over Ethernet Transformer



The ETH1-460L LAN Transformer is designed to meet the demands of PoE plus applications. From exceeding Gigabit Ethernet requirements to delivering robust performance in PoE+ and PoE++ scenarios, these transformers increase the efficiency of modern network designs.



1. High Power Design for 4P cabling plants at 60/120 watts, ensuring robust power delivery in network applications.

2. Exceeds Gigabit Ethernet return loss requirements for high-speed data transmission.

3. Compliant with IEEE 802.3at-2009 and IEEE 802.3.bt Type 4 industry standards for PoE+ and PoE++ applications

4. Can handle 22.5 mA minimum DC offset at 85°C, with a typical temperature rise of 7°C with 800 mA and 10°C with 1000 mA DC applied, maintaining stability in varying environmental conditions.

5. This single-component solution may be used in place of two ETH1-230 parts, saving valuable board space.

6. Wide Ambient Temperature Range of −40°C to +85°C suitable for various environmental conditions.

7. Featuring ferrite core material for enhanced performance and RoHS-compliant terminals for environmental sustainability.

8. Withstands up to three 40-second reflows at +260°C, ensuring durability and reliability during assembly.

9. Complies with 802.3af specifications with minimal insertion loss and excellent return loss over the entire frequency range.



Detailed Information of ETH1-460L PoE+ Magnetics



LINK-PP LP6096ANL is equal to ETH1-460L

LINK-PP Part Number

LP6096ANL

Coilcraft Part Number

ETH1-460L

Speed

1000BASE-T

Application - LAN

ETHERNET (PoE+)

Core Material

Ferrite

Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Insertion Loss

1.0 min dB from 0.1 MHz to 100 MHz

1.2 min dB at 125 MHz

Return Loss 18 dB min from 1 MHz to 40 MHz
16 dB min at 50 MHz
12 dB min at 80 MHz
10 dB min at 100 MHz
Inductance 350 uH
winding to winding isolation 1500 Vrms
Termination RoHS-compliant. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations

Operating Temperature

-40℃ TO +85℃

Moisture Sensitivity Level (MSL) 1

Weight

3.6 g

Package

50/13" reel; Plastic tape: 32mm wide, 0.5mm thick, 24mm pocket spacing, 10.6mm pocket depth



ETH1-460 Schematics



ETH1-460 Schematics
