TG111-HRP10NYRL / TG111-HRPE10NYRL POE Transformer 1000Base-T LP82425ANL

China TG111-HRP10NYRL / TG111-HRPE10NYRL POE Transformer 1000Base-T LP82425ANL supplier

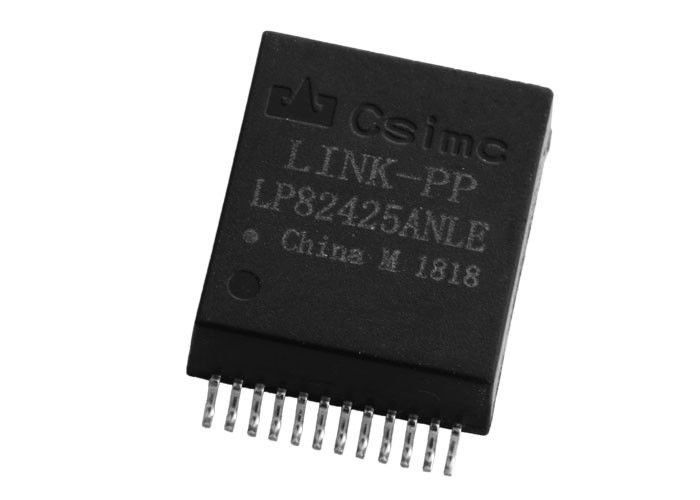

Large Image :  TG111-HRP10NYRL / TG111-HRPE10NYRL POE Transformer 1000Base-T LP82425ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,SGS,Reach,RoHS
Model Number: TG111-HRP10NYRL / TG111-HRPE10NYRL

Payment & Shipping Terms:

Minimum Order Quantity: 2000/5k,10K
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3800000PCS/Month
Contact Now
Detailed Product Description
Sepc: TG111-HRP10NYRL / TG111-HRPE10NYRL Apllication: 1000Base-T POE
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Mass Part Number: LP82425ANL
Cores: 8 Pins: 24

TG111-HRP10NYRL / TG111-HRPE10NYRL POE Transformer 1000Base-T LP82425ANL
  • TG111-HRP10NYRL / TG111-HRPE10NYRL => LP82425ANL 【Mass Production Model】
  • Meet The Isolation,Insertion Loss and Return Loss Requirements of IEEE802.3
  • Available Industry Standard and Low Profile Packages
  • Isolation Modules are Available for Most LAN IC Manufacture’s Products

TG111-HRP10NYRL / TG111-HRPE10NYRL POE Transformer 1000Base-T LP82425ANL

TG111-HRP10NYRL / TG111-HRPE10NYRL POE Transformer 1000Base-T LP82425ANL
LINK-PP Part Number LP682425ANL
Speed 10/100/1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (PoE)
Package SMD
Temperature -40℃ TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (mm) 5.72
Package Length (mm) 18.80
Package Width (mm) 13.64
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
