VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL

China VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL supplier
VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL supplier VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL supplier

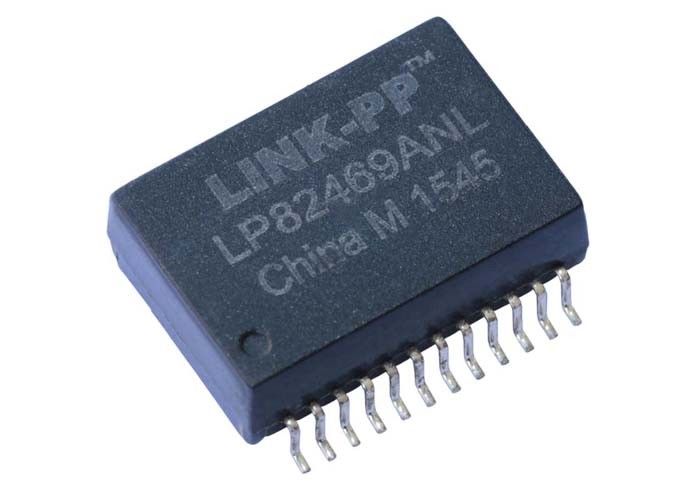

Large Image :  VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,SGS,Reach,RoHS
Model Number: VP6014RM

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union,, L/C, D/A, D/P, MoneyGram
Supply Ability: 3800000PCS/Month
Contact Now
Detailed Product Description
Part Number: VP6014RM Transformer Type: Gigabit POE+Ethernet
Turns Ratio: 1 : 1 Transmitter, 1 : 1 Receiver Mounting Type: SMT
Size / Dimension: 18.15mm L X12.20mm W X6.25mm Mass PN: LP82469ANL

VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL

1. Single Port Gigabit POE+ Ethernet Transformer

2. Turns Ratio : 1:1

3. Mounting Type : SMT

4. Packaging : Reel,Carton

5. Pins Number : 24

6. Dimension : 18.15mm x12.20mm x6.25mm



10/100/1000 Base -T Single Port Transformer Magnetic Modules,SMD,Rohs
LINK-PP Part Number: LP82469ANL
Bothhand Part Number: VP6014RM
Speed: 10/100/1000BASE-T
Number of Ports: SINGLE
Application - LAN: ETHERNET (PoE+)
Package: SMD
Temperature: - 40 TO + 85℃
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S
Construction: OPEN FRAME
Cores Per Port: 8
Number of Ports: SINGLE
Package Height (Inches): 0.236
Package Height (mm): 6.00
Package Length (Inches): 0.715
Package Length (mm): 18.15
Package Width (Inches): 0.480
Package Width (mm): 12.20
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL



VP6014RM Gigabit Ethernet Transformer POE+ 10/100/1000Base-T 24 Pins LP82469ANL
