J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL

J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL
J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL

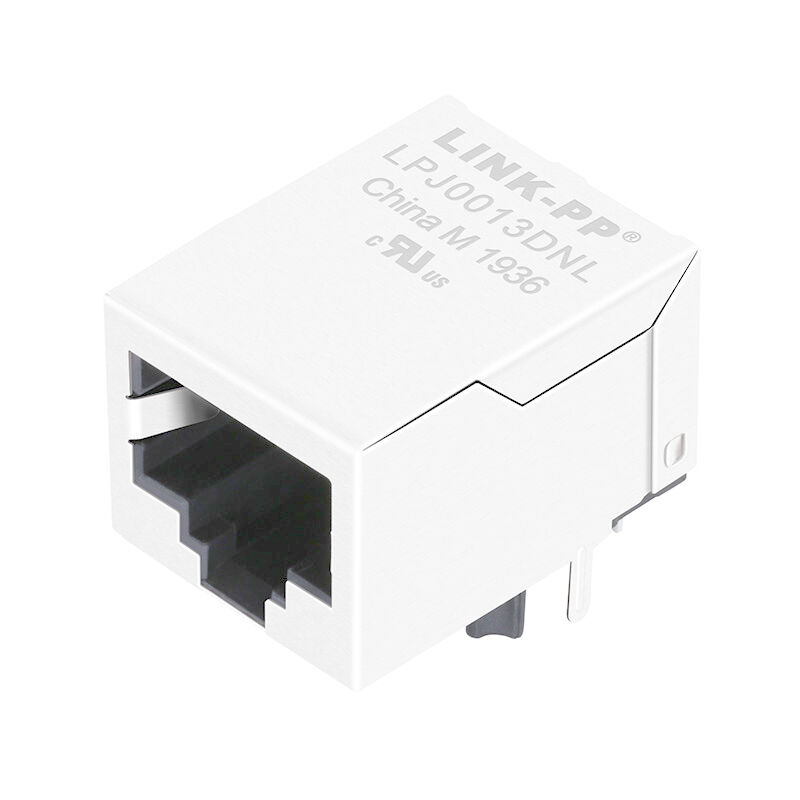

Large Image :  J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: J1A101ZCF
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Specifications: J1A101ZCF PN: LPJ0013DNL
Apllication: 10/100Mbps Original Munafactuer: LINK-PP
Samples: Free Number Of Ports:: SINGLE
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL

Quick Details
  • Tab Down 1x1 Port Without LEDs
  • 10/100Base-T RJ45 Female Jack
  • J1A101ZCF Pin To Pin LPJ0013DNL
  • Dimension : 21.25mmX15.93mmX13.30mm
Specifications
PN
Manufacturer
Description
J1A101ZCF
LPJ0013DNL
LINK-PP
 RJ45 Female Jack 10 / 100M Networking Without LEDs
Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Female Rj45
10/100
Thru-Hole(SMT Optional)
Orientation
Termination
LED Color
Shielding
90° Angle (Right)
Solder
Optional
(Un)Shielded,EMI-Finger(With Or Wi)

  • 10/100 Ethernet RJ45
  • IEEE802.3u Compliant
  • 6µ/30µ” Gold Plating (min) on Contacts
  • 350uH min OCL at 8mA DC Bias Across the
  • Full Temp Range
  • 100% Electrical Testing
  • 1500Vrms Hi-Pot
  • Proprietary Robust Contact Design
  • Designed to support applications, such as SOHO (ADSL modems), LAN-on-Mother-
    board (LOM), Hub and Switches

J1A101ZCF RJ45 Female Jack 10/100M Networking No LEDs LPJ0013DNL 0

Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
20 years production experience,
1100 staff,
100% test
Flexible delivery time


Tag:

industrial rj45 connector,

rj-45 ethernet jack,

modular jacks rj45
