Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX2326FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HX2326FNLT |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
12.70mm L X 7.11mm W |
Hipot: |
1500V |
Samples: |
Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
HX2326FNLT |
Turns Ratio: |
1CT : 1CT |
Size / Dimension: |
12.70mm L X 7.11mm W |
Hipot: |
1500V |
Samples: |
Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:
| 10/100 BASE-T Single Port Telecom Transformer Modules, With PoE+, SMD,Rohs | |
| Pulse Specifications | HX2326FNLT |
| Speed | 10/100BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE+) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |
| Package Height (Inches) | 0.234 |
| Package Height (mm) | 5.95 |
| Package Length (Inches) | 0.500 |
| Package Length (mm) | 12.70 |
| Package Width (Inches) | 0.281 |
| Package Width (mm) | 7.150 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |

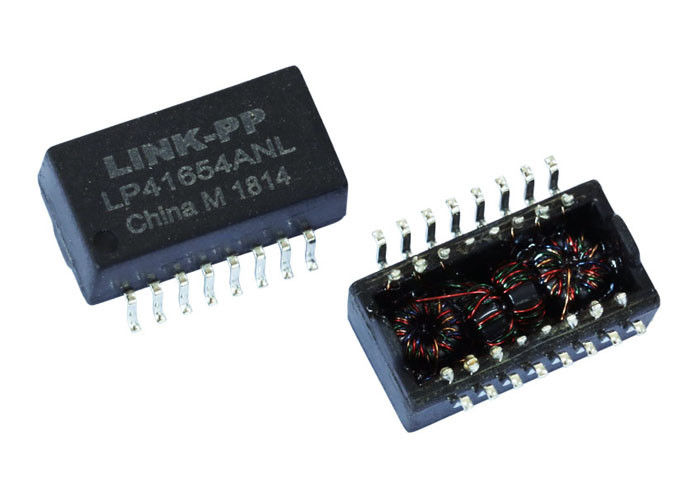

| LINK-PP Equivalent Part Number | LP41654ANL |
