7499511002 Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ LPJK6069CNL

China 7499511002 Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ LPJK6069CNL supplier
7499511002 Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ LPJK6069CNL supplier 7499511002 Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ LPJK6069CNL supplier

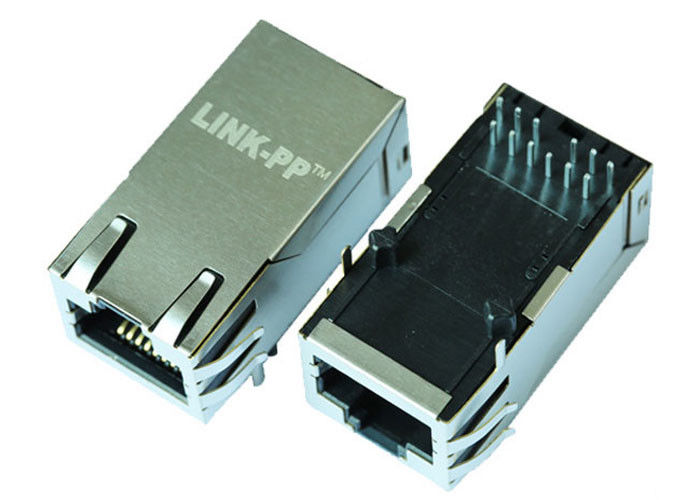

Large Image :  7499511002 Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ LPJK6069CNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 7499511002

Payment & Shipping Terms:

Minimum Order Quantity: 50/500/5000
Price: Supportive
Packaging Details: Optional (60pcs/try);960/box
Delivery Time: Stock or 30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Bel Spec: 7499511002 Analogue: LPJK6069CNL
Ethernet: Gigabit Samples: Available
RJ45 Connector: 1X1 With POE+ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

7499511002 Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ LPJK6069CNL

Part Number 7499511002
LINK-PP Part Number LPJK6069CNL
Application-Lan ETHERNET(PoE+)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 12
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.50
Package Length (mm) 33.02
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed WITHOUT MAGNETICS
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

7499511002 Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ LPJK6069CNL
