13F-60AGYD2PL2NL 10/100 Base - T Ethernet RJ45 Modular Jack with LED LPJ0034EBNL

13F-60AGYD2PL2NL 10/100 Base - T Ethernet RJ45 Modular Jack with LED LPJ0034EBNL
13F-60AGYD2PL2NL 10/100 Base - T Ethernet RJ45 Modular Jack with LED LPJ0034EBNL 13F-60AGYD2PL2NL 10/100 Base - T Ethernet RJ45 Modular Jack with LED LPJ0034EBNL

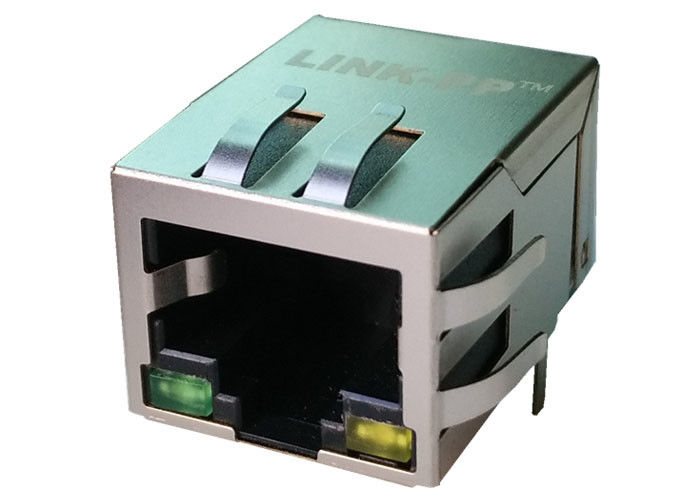

Large Image :  13F-60AGYD2PL2NL 10/100 Base - T Ethernet RJ45 Modular Jack with LED LPJ0034EBNL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 13F-60AGYD2PL2NL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specifications: 13F-60AGYD2PL2NL Ethernet: 10/100 Base-TX
LED Color: Green - Yellow Contact Finish: Gold
Samples: Available Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

rj-45 ethernet jack

,

modular jacks rj45

13F-60AGYD2PL2NL 10/100 Base-T Ethernet RJ45 Modular Jack with LED LPJ0034EBNL

Ethernet RJ-45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJ0034EBNL
Part Number 13F-60AGYD2PL2NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.30
Package Length (mm) 21.25
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
