Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 2250022-8
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: About 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
2250022-8 |
Samples: |
Free |
Category: |
Integrated RJ45 MagJack |
Speed: |
Gigabit Ethernet |
Original Munafactuer: |
LINK-PP |
Drawing: |
Support Datasheet |
Part Number: |
2250022-8 |
Samples: |
Free |
Category: |
Integrated RJ45 MagJack |
Speed: |
Gigabit Ethernet |
Original Munafactuer: |
LINK-PP |
Drawing: |
Support Datasheet |

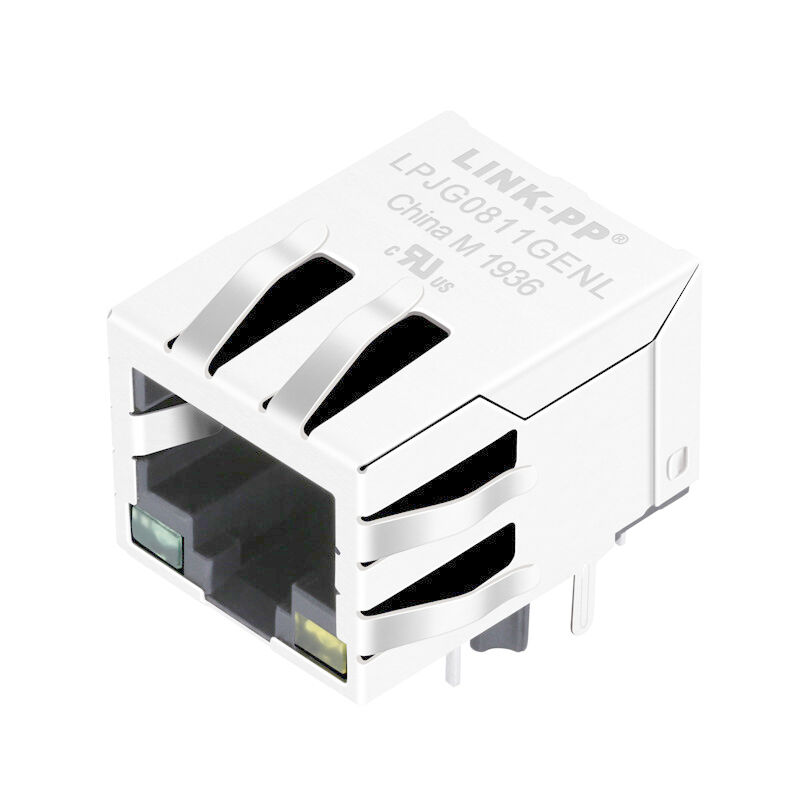

| Bel Fuse 2250022-8 | 1x1 Tab Down Gigabit RJ45 MagJack with G/Y LED & EMI Tabs | |
| LINK-PP Part Number | LPJG0811GENL |
| Part Number | 2250022-8 |
| Application-Lan | ETHERNET(NON PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.75 |
| Package Length (mm) | 21.65 |
| Package Width (mm) | 16.13 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
The 2250022-8 offers a robust and compact solution for designers seeking reliable 1x1 RJ45 magnetics with EMI shielding and visual link status indication. Designed with a standard height profile, tab-down port orientation, and through-hole mounting, it offers reliable performance and straightforward PCB integration. Its support for Gigabit Ethernet, standard footprint, and RoHS compliance make it ideal for modern high-speed networking applications.
