Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR913550A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Spec: |
HR913550A / HR913550AE |
Mass Production: |
LPJ4011FBNL |
Manufacturer: |
LINK-PP |
Termination: |
Solder |
LEDs: |
Through Hole |
Shielded: |
Yes |
Tab Orientation: |
Tab Down |
Standard: |
IEEE 802.3 Compatible |
Spec: |
HR913550A / HR913550AE |
Mass Production: |
LPJ4011FBNL |
Manufacturer: |
LINK-PP |
Termination: |
Solder |
LEDs: |
Through Hole |
Shielded: |
Yes |
Tab Orientation: |
Tab Down |
Standard: |
IEEE 802.3 Compatible |
1. RoHS Compliant: Yes (PB Free)
2. Isolation: 2250VDC 0.5mA 60sec (UTP Side to Chip Side)
3. OCL: 350uH Minimum @100KHz 100mV with 8mADC
4. Insertion Loss: -1.0dB Maximum @300KHz ~ 100MHz
5. Return Loss:
•-20dB Minimum @ 1MHz ~ 10MHz
•-16dB Minimum @ 10MHz ~ 30MHz
•-12dB Minimum @ 30MHz ~ 60MHz
•-10dB Minimum @ 60MHz ~ 80MHz
6. Common Mode Rejection:
•-30dB Minimum @1MHz ~ 50MHz
•-20dB Minimum @50MHz ~ 150MHz
7. Crosstalk:
•-40dB Minimum @1MHz ~ 30MHz
•-35dB Minimum @30MHz ~ 60MHz
•-30dB Minimum @60MHz ~ 100MHz

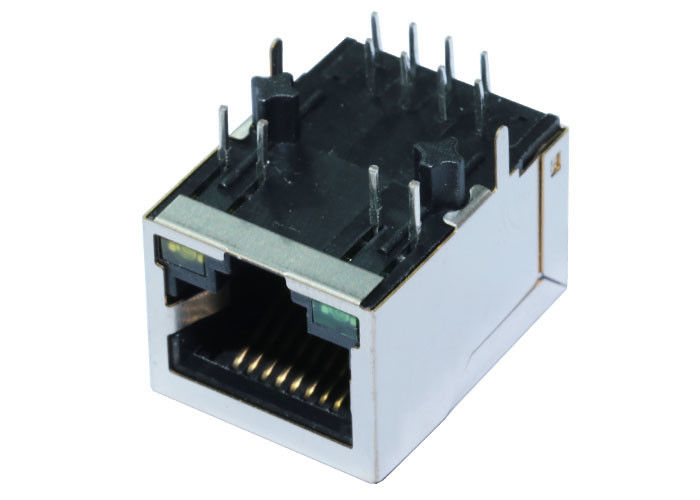

| Single Port RJ45 Connector with Integrated Magnetics and LED for 10/100Base-T NIC Applications | |
| LINK-PP Part Number | LPJ4011FBNL |
| Hanrun Part Number | HR913550A / HR913550AE |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.40 |
| Package Length (mm) | 21.30 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
