Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: RTC-134AAK1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
RTC-134AAK1A |
Application: |
PCB,networking And Communication Equipments |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
Cross Rf: |
LPJGF47405A8NL => RTC-134AAK1A |
Part Number: |
RTC-134AAK1A |
Application: |
PCB,networking And Communication Equipments |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
Cross Rf: |
LPJGF47405A8NL => RTC-134AAK1A |
Description:

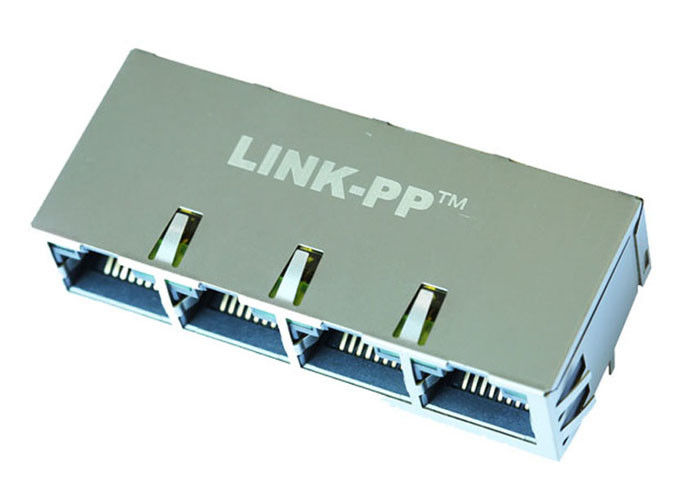

| 1X4 Port Ethernet RJ45 Connector with 1000 Base-T Integrated Magnetics,Green&Yellow/Green&Yellow LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJGF47405A8NL |
| Part Number | RTC-134AAK1A |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 12 |
| Diodes | NO DIODES |
| LED Option | GREEN/GREEN&YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X4 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.50 |
| Package Length (mm) | 25.40 |
| Package Width (mm) | 59.20 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
