MTJ-88SX1-FSF-PG-LG-M7 1x1 Port RJ45 Modular Jack 10/100 BASE - T With LEDs

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

MTJ-88SX1-FSF-PG-LG-M7 1x1 Port RJ45 Modular Jack 10/100 BASE - T With LEDs

MTJ-88SX1-FSF-PG-LG-M7 1x1 Port RJ45 Modular Jack 10/100 BASE - T With LEDs
MTJ-88SX1-FSF-PG-LG-M7 1x1 Port RJ45 Modular Jack 10/100 BASE - T With LEDs MTJ-88SX1-FSF-PG-LG-M7 1x1 Port RJ45 Modular Jack 10/100 BASE - T With LEDs

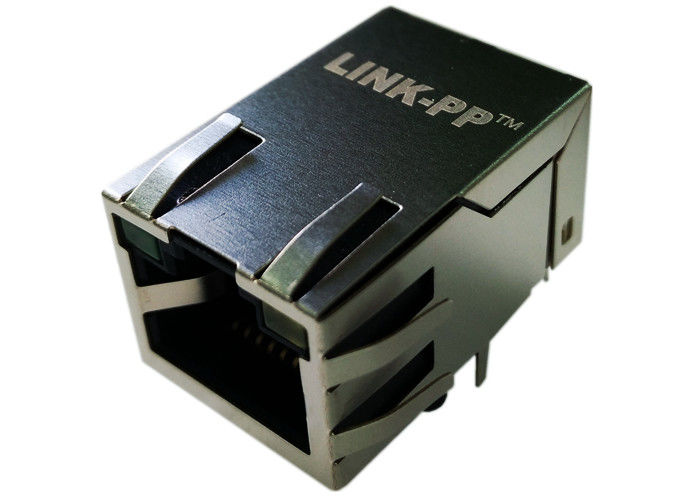

Large Image :  MTJ-88SX1-FSF-PG-LG-M7 1x1 Port RJ45 Modular Jack 10/100 BASE - T With LEDs

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: MTJ-88SX1-FSF-PG-LG-M7
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specification: MTJ-88SX1-FSF-PG-LG-M7 Latch: Tab Up
Design Flexible: Yes Samples: Free Available
Base: 10/100Mbps File: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

modular jacks rj45

,

industrial rj45 connector

MTJ-88SX1-FSF-PG-LG-M7 1x1 Port RJ45 Modular Jack 10/100 BASE-T With LEDs

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Up,RoHS
Part Number MTJ-88SX1-FSF-PG-LG-M7
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW / GREEN
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.50
Package Length (mm) 25.30
Package Width (mm) 16.20
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
