Product Details:
Payment & Shipping Terms:
|
| Part Number: | RT7-ZZ-0002 | Interface: | 10/100Base-T,AutoMDIX |
|---|---|---|---|
| LINK-PP Part Number: | LPJ16275AHNL | Termination: | Solder |
| Samples: | Free Available | File: | PDF/3D/ISG/Stp/Step/Datasheet |
| Highlight: | poe rj45 pinout,dual rj45 jack |
||

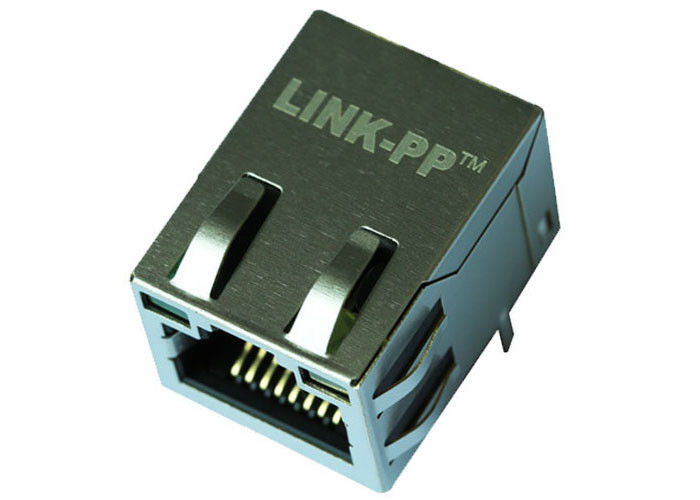

| Part Number | RT7-ZZ-0002 |
| LINK-PP Part Number | LPJ16275AHNL |
| Application-Lan | ETHERNET(PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Temperature | 0 TO 70℃ |
| Diodes | NO DIODES |
| LED Option | WITHOUT |
| Shielding | Shielded, NO EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB DOWN |
| Number of Ports | 1X4 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.80 |
| Package Length (mm) | 21.50 |
| Package Width (mm) | 15.75 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
