Part No: |
LPJG4926GENL |
Speed: |
1000 Base-T |
Number Of Ports: |
1X1 |
Specification: |
IEEE 802.3af/at |
Mounting Type: |
THT |
LED Option: |
No LEDs |
Latch: |
Up |
Shielding: |
Shielded, EMI Finger |
Orientation: |
90° Angle (Right) |
PCB Mount Angle: |
Side Entry |
Pin Type: |
THT Solder |
PoE: |
NONE |
Part No: |
LPJG4926GENL |
Speed: |
1000 Base-T |
Number Of Ports: |
1X1 |
Specification: |
IEEE 802.3af/at |
Mounting Type: |
THT |
LED Option: |
No LEDs |
Latch: |
Up |
Shielding: |
Shielded, EMI Finger |
Orientation: |
90° Angle (Right) |
PCB Mount Angle: |
Side Entry |
Pin Type: |
THT Solder |
PoE: |
NONE |
|

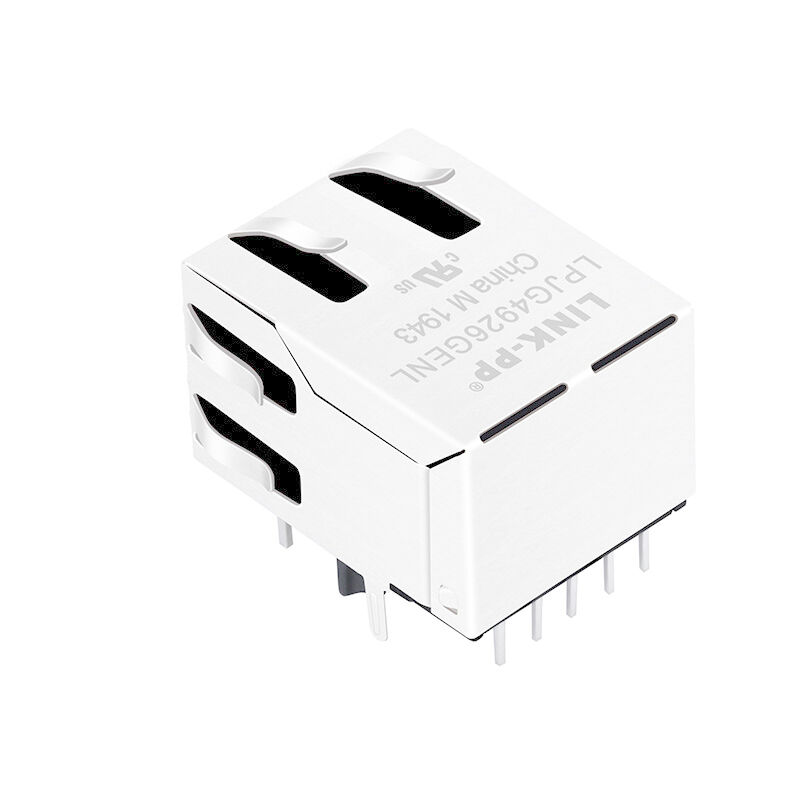

LPJG4926GENL Single Port RJ45 Connector 1000 Base-T Ethernet With PoE+ Function |
|
|
LINK-PP Part Number |
LPJG4926GENL |
|
RJ45 ConnectorHeight |
13.30mm |
|
RJ45 Connector Length |
21.25mm |
|
RJ45 Connector Width |
15.93mm |
|
Housing Material |
Thermoplastic PBT+30%G.F UL94V-0 |
|
Contact Material |
Phosphor Bronze 5210R-EH, Thickness=0.35mm |
|
Pins Material |
Brass C2680R-H, Thickness=0.35mm |
|
Shield Material |
SUS 201-1/2H, Thickness=0.2mm |
|
Contact plating |
Gold 6 micro-inches min.In contact area. |
|
ELECTRICAL SPECFICATIONS @25°C |
|
|
Turn Ratio(±5%) |
Pri: Sec =1CT:1CT |
| Inductance 0CL | 350UH MIN @100KHz/0.1V, 8mA DC Bias 120uH MIN @100KHz/0.1V, 18mA DC Bias |
| Insertion Loss | -1.0dB MAX @1-100MHz -1.2dB MAX @100-125MHz |
| Return Loss | -16dB MIN @1-40MHz -12dB MIN @40-60MHz -10dB MIN @60-80MHz -8dB MIN @80-100MHz |
| Cross talk | -30dB MIN @1-100MHz |
| Common to Common Mode Rejection | -30dB MIN @1-100MHz |
| DC Current/Voltage Rating pse Pins | 600mA MAX @54VDC(Continuous) |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature | -40°C to +85°C |
|
|
|
| PCB Layout | |
|
|
