Home > products > RJ45 Modular Jack > 6605790 1x1 Port Tab Up RJ45 Modular Jack 10/100M With LEDs LPJ16116A42NL

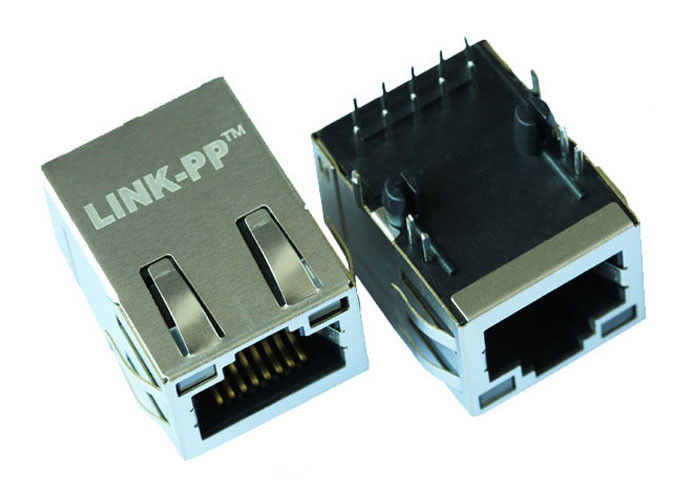

6605790 1x1 Port Tab Up RJ45 Modular Jack 10/100M With LEDs LPJ16116A42NL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 6605790

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

modular jacks rj45

Specification:
6605790
Latch:
Tab Up
Design Flexible:
Yes
Samples:
Free Available
Base:
10/100Mbps
File:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
6605790
Latch:
Tab Up
Design Flexible:
Yes
Samples:
Free Available
Base:
10/100Mbps
File:
PDF/3D/ISG/Stp/Step/Datasheet
6605790 1x1 Port Tab Up RJ45 Modular Jack 10/100M With LEDs LPJ16116A42NL
6605790 1x1 Port Tab Up RJ45 Modular Jack 10/100M With LEDs LPJ16116A42NL

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Up,RoHS
Part Number 6605790
LINK-PP Part Number LPJ16116A42NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 5
Diodes NO DIODES
LED Option GREEN / YELLOW
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.60
Package Length (mm) 21.50
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
