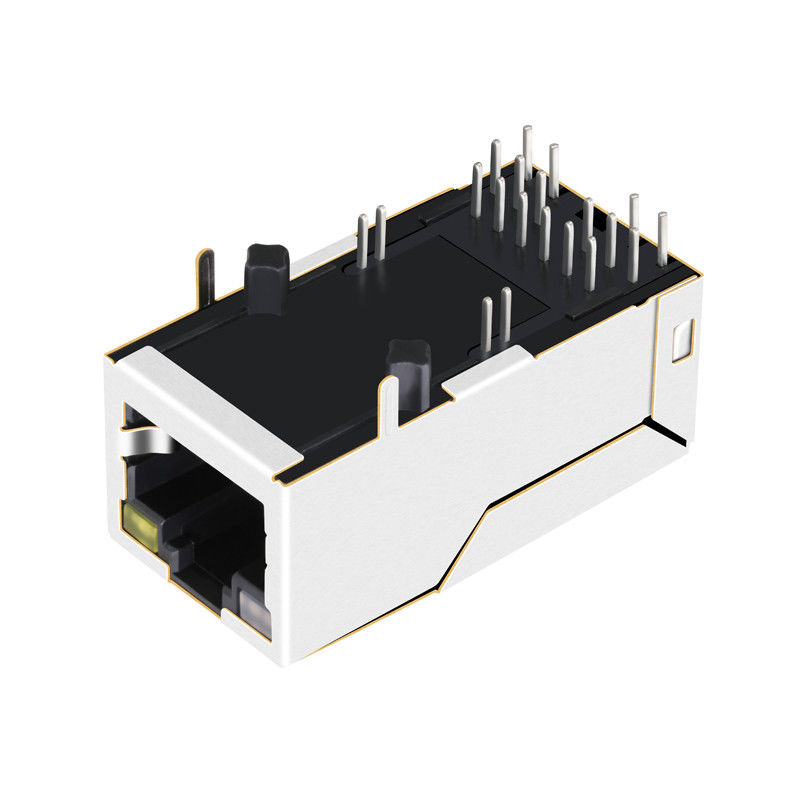

ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL

ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL
ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL
video play

Large Image :  ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJ-199
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Optional (60pcs/try);960/box
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Detailed Product Description
Bel Spec: ARJ-199 Analogue: LPJK6001BONL
Ethernet: 10/100 Base-T Samples: Available
RJ45 Connector: 1X1 With POE+ File: PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
High Light:

rj45 power over ethernet

,

dual rj45 jack

ARJ-199 POE+ RJ-45 Jack Connector with 100 Base - T Magnetics LPJK6001BONL



Connector RJ45 ICM Magjack with 100 Base-T Integrated Magnetics & PoE+,Orange&Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJK6001BONL
Part Number ARJ-199
Application-Lan ETHERNET(PoE+)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.50
Package Length (mm) 32.50
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 100 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL 0


ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL 1ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL 2


ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL 3ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL 4ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL 5ARJ-199 POE+ RJ45 Connector with 100 Base - T Magnetics LPJK6001BONL 6

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy
