Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 1734795-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: 3-6 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Port Configuration: |
Single Port 1 X 1 |
Shielding: |
Shielded |
Modular Jack Latch Orientation: |
Latch Up |
Number Of Positions: |
8 |
Number Of Loaded Positions: |
8 |
PCB Mount Orientation: |
Right Angle |
Port Configuration: |
Single Port 1 X 1 |
Shielding: |
Shielded |
Modular Jack Latch Orientation: |
Latch Up |
Number Of Positions: |
8 |
Number Of Loaded Positions: |
8 |
PCB Mount Orientation: |
Right Angle |

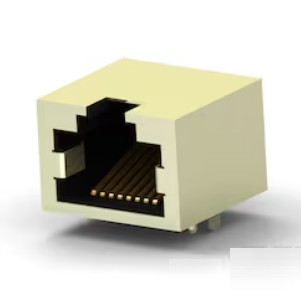

The 1734795-1 is a modular RJ45 connector designed for Ethernet applications requiring a shielded, right-angle, through-hole solution. It offers 8 positions and 8 contacts (8P8C), making it compliant with standard Ethernet pinouts. The shielded construction provides robust EMI protection. This connector suits various networking equipment, including routers, switches, and industrial control systems.
| Part Number | 1734795-1 |
| LINK-PP Part Number | LPJE841-0DNL |
| Connector Type | RJ45 (8P8C) |
| Port Configuration | Single Port (1x1) |
| LED Indicators | None |
| Category Rating | Cat 3 |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Plating | Gold Flash (6μ") |
| LED Option | WITHOUT |
| Shielding | Yes |
| Mounting Type | Through-Hole - Solder |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP |
| PCB Mount Angle | SIDE ENTRY |
| Pin Type | THT SOLDER |
| Operating Temperature | -40°C to +85°C |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Shield EMI Tabs | WITHOUT |
| Housing Material | Thermoplastic, UL 94V-0 flame retardant |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
