Home > products > RJ45 Multi Port Jack > RJSAE538402 Stacked RJ45 2x1 Without Magnetics Connector LPJE106XAHNL

RJSAE538402 Stacked RJ45 2x1 Without Magnetics Connector LPJE106XAHNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: RJSAE538402

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 usb connector combo

Spec:
RJSAE538402
Port:
2x1 Female Rj45
Magnetics:
WITHOUT
LED:
GREEN / YELLOW
Mounting:
Side Entry (Right Angle)
Cross Ref:
LPJE106XAHNL
Spec:
RJSAE538402
Port:
2x1 Female Rj45
Magnetics:
WITHOUT
LED:
GREEN / YELLOW
Mounting:
Side Entry (Right Angle)
Cross Ref:
LPJE106XAHNL

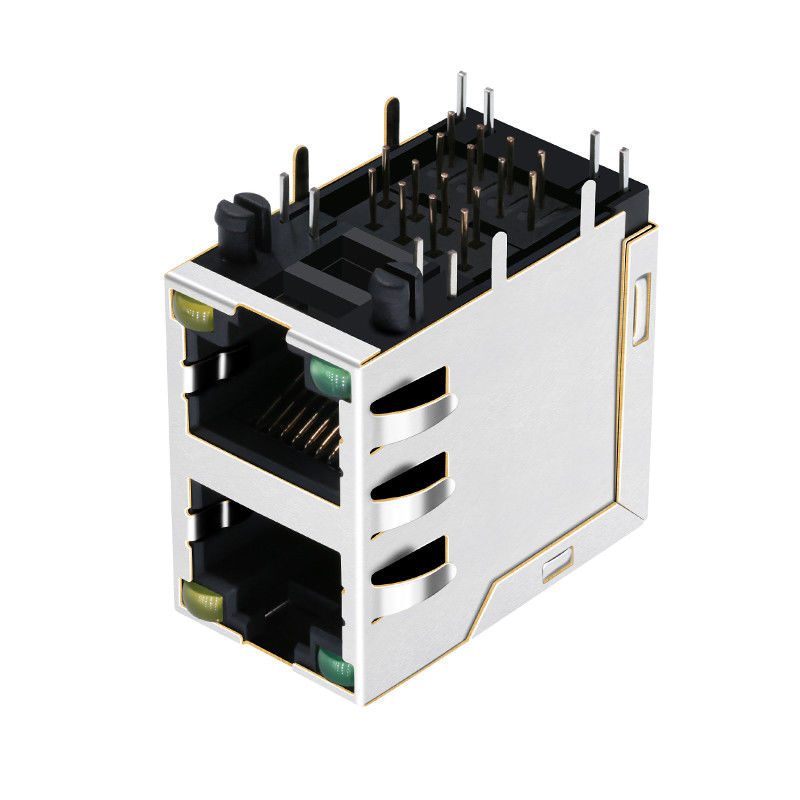

RJSAE538402 Stacked RJ45 2x1 Without Magnetics Connector LPJE106XAHNL
RJSAE538402 Stacked RJ45 2x1 Without Magnetics Connector LPJE106XAHNL

  • LPJE106XAHNL 2x1 Ports Gigabit Female Socket Rj45
  • Complies with requirement of IEEE 802.3ab standards.
  • RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
  • Size same as RJ-45 connector to save PCB board space.
  • Reduced EMI radiation to improve EMI performance.
  • Compliance with ROHS requirements.
  • Operating temperature range: -40℃ to +85℃.
LINK-PP Part Number: LPJE106XAHNL
Part Number RJSAE538402
Application - LAN: ETHERNET (NON PoE)
Package: SMD
Temperature: -40 TO +85
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S
Construction: OPEN FRAME
Cores Per Port: 1
Package Height (mm): 25.40
Package Length (mm): 28.15
Package Width (mm): 16.50
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
