RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL

China RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL supplier
RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL supplier RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL supplier

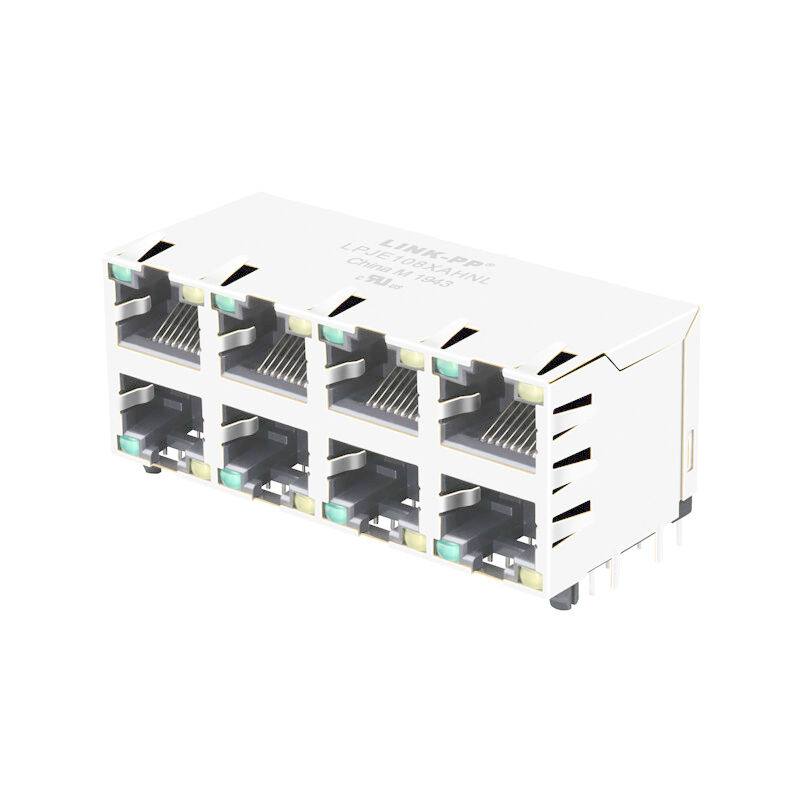

Large Image :  RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: RJSAE538408

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2K, 20K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 6000K/month
Contact Now
Detailed Product Description
Spec: RJSAE538408 Port: 2x4 Female Rj45
Magnetics: WITHOUT LED: GREEN / YELLOW
Mounting: Side Entry (Right Angle) Cross Ref: LPJE108XAHNL

RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL



2x4 Port 8P8C RJ45 Female Connector without Integrated Magnetics,Green/Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJE108XAHNL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option Green/Yellow LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 25.40
Package Length (mm) 28.15
Package Width (mm) 63.86
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed without Magnetics
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
