RB1-2A5BAK1A 1 x 1000 Base - T Ehternet RJ45 Modular Jack LPJG0803G25NL

RB1-2A5BAK1A 1 x 1000 Base - T Ehternet RJ45 Modular Jack LPJG0803G25NL
RB1-2A5BAK1A 1 x 1000 Base - T Ehternet RJ45 Modular Jack LPJG0803G25NL RB1-2A5BAK1A 1 x 1000 Base - T Ehternet RJ45 Modular Jack LPJG0803G25NL

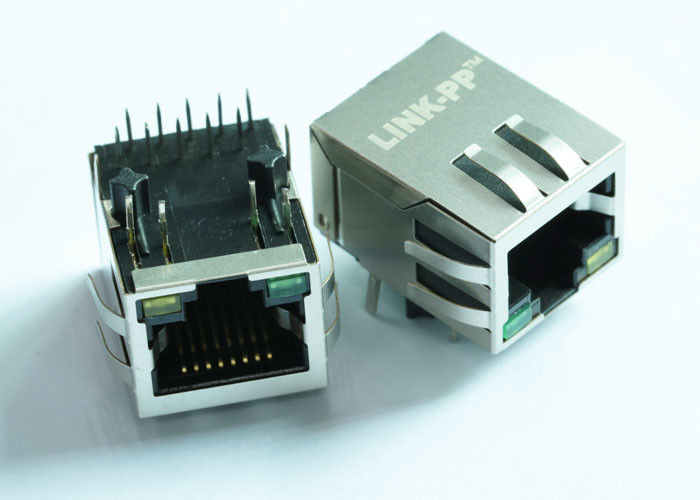

Large Image :  RB1-2A5BAK1A 1 x 1000 Base - T Ehternet RJ45 Modular Jack LPJG0803G25NL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RB1-2A5BAK1A
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Pn#: RB1-2A5BAK1A Equivalent: LPJG0803G25NL
Interface: 1000Base-T Samples: Available 2-3 Pcs
LED Option: ORANGE&GREEN/YELLOW File: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

modular jacks rj45

,

industrial rj45 connector

RB1-2A5BAK1A RJ45 Modular Jack 1 x 1000 Base-T Ehternet LPJG0803G25NL




1. 1 x 10/100 Mbit Ehternet

2. Right Angle Rj45 8 Position

3. Tab-down, LED Inline

4. Hipot from Imput to output : 1500Vrms



Description:

Single Port Modular RJ45 Jack with 1000 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG0803G25NL
Part Number RB1-2A5BAK1A
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.40
Package Length (mm) 21.30
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
