Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJG0926HENL
Payment & Shipping Terms
Minimum Order Quantity: 50pcs, free sample is available
Price: $0.09-$1.85
Packaging Details: 50 pcs/1tray, 20 tray/1 carton, 32*30*31cm, 8KGS (1000pcs)/1 carton
Delivery Time: As soon as possible
Payment Terms: TT,NET30/60/90 Days, L/C
Supply Ability: 6000K PCS per Month
Connector Gender: |
RJ45 Female Jack |
Speed: |
1000 Base-T |
PoE+: |
Support |
Status Indicator Type: |
LED |
Latch Mechanical: |
Tab Down |
Modular Jack & Plug Interface Type : |
RJ45 With Integrated Magnetics |
Port Configuration: |
Single Port |
Port Matrix Configuration: |
1 X 1 |
Minimum Operating Temperature: |
0 ℃ |
Maximum Operating Temperature: |
70℃ |
Orientation: |
90° Angle (Right) |
PCB Mount Type: |
Side Entry |
Connector Gender: |
RJ45 Female Jack |
Speed: |
1000 Base-T |
PoE+: |
Support |
Status Indicator Type: |
LED |
Latch Mechanical: |
Tab Down |
Modular Jack & Plug Interface Type : |
RJ45 With Integrated Magnetics |
Port Configuration: |
Single Port |
Port Matrix Configuration: |
1 X 1 |
Minimum Operating Temperature: |
0 ℃ |
Maximum Operating Temperature: |
70℃ |
Orientation: |
90° Angle (Right) |
PCB Mount Type: |
Side Entry |

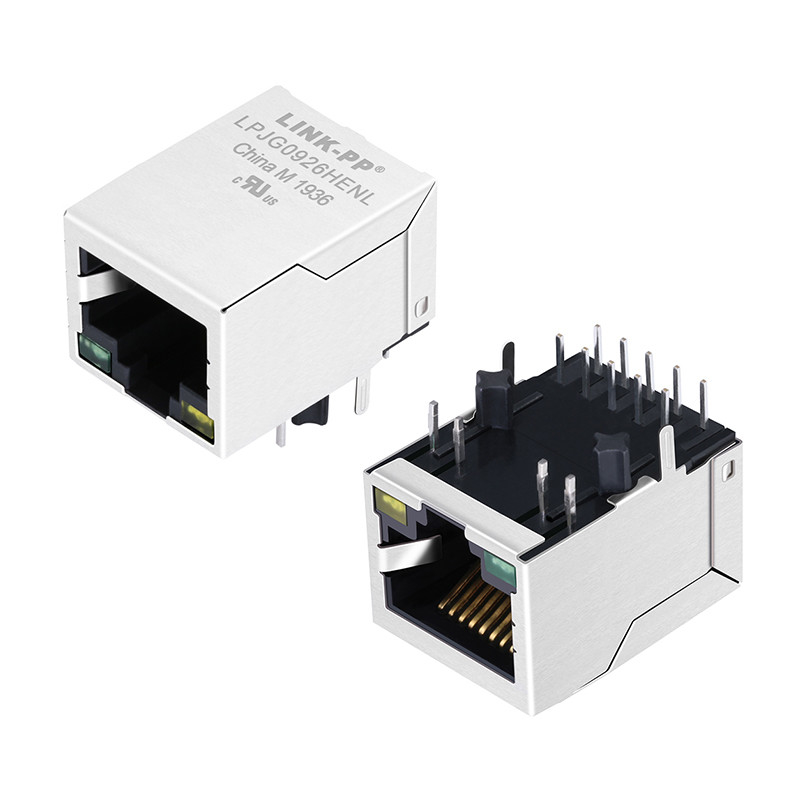

With robust construction and advanced features, LPJG0926HENL offers reliability and efficient data transmission:
1. The Magjack is an RJ45 female jack, providing a reliable and secure connection.
2. Supports data transfer at 1000 Base-T speed for high-speed network environments.
3. IT is PoE+ compatible, allowing it to deliver both data and power to connected devices.
4. Equipped with LEDs, this connector provides visual status indicators.
5. The tab-down latch design simplifies installation and maintenance.
6. This connector features integrated magnetics, which helps filter and isolate signals.
7. With a 1 X 1 port matrix configuration, it's designed for a single connection point.
8. The LPJG0926HENL operates from 0°C to 70°C, making it suitable for a variety of environments.
RJ45 connectors with transformers play a crucial role in data transmission. These connectors are used in HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP phones, and xDSL modems.
These connectors facilitate data transmission in modern communication systems. For example, it allows multiple devices to connect to network switches. In computer motherboards, LPJG0926HENL enables wired Internet connections. SDH and PDH transmit voice and data over the network with RJ45 Mag Jack. Additionally, voice-over IP (VoIP) communications are ensured to be clear and uninterrupted. xDSL modems provide high-speed internet services through Magjacks. These connectors are essential for maintaining a stable and fast internet connection.
| Overview | RJ45 Connector with Magnetics for PoE+ Application |
|---|---|
| Link-pp part number | LPJG0926HENL |
| Turn Ratio (TX) | 1CT:1CT |
| Turn Ratio (RX) | 1CT:1CT |
| Inductance OCL |
350uH MIN at 100KHz/0.1V, 8mA DC Bias |
| Insertion Loss |
-1.0 dB MAX at 1-100MHz |
| Return Loss |
- 16dB MIN at 1-40MHz |
| Cross talk | - 30dB MIN at 1-100MHz |
| Common Mode Rejection | - 30dB MIN at 1-100MHz |
| Hipot Test | 1500Vrms MIN |
| DCR | 1.2Ω MAX |
| Connector Length | 21.25mm/0.8inch |
| Connector Width | 15.93mm/0.627inch |
| Connector Height |
13.03mm/0.524inch |
| Peak temperature | 260±5℃ |
| Contact Plating | Gold 6 "u", Gold 15 "u" |
| EMI Tabs | Without |
| Performance Category | Cat 5 |
| Termination Style | Solder |
| Current Rating | 8 mA |
| LED Indicator Colors | Green (Left) and Yellow (Right) |
| Packaging | Tray |
| Contact Plating | Gold 6 micro-inches min. In contact area. |
Link-PP ensures compliance with standards at every step of production. It starts with raw material inspection, followed by cut and dip tin, and evaluation of soldering resistance and capacitance. Further inspections include welding coil quality, semi-finished testing, pins, glues, etc.
The process continues with LED testing, solder ground evaluation, and withstand voltage and ground capacitance testing. High-frequency testing ensures optimal performance. Finally, finished product inspection ensures the best quality before careful packaging for delivery.
