LPJG4928DNL POE+ 1x1 Port RJ45 Connector With 1000 Base - T Magnetics

China LPJG4928DNL POE+ 1x1 Port RJ45 Connector With 1000 Base - T Magnetics supplier
LPJG4928DNL POE+ 1x1 Port RJ45 Connector With 1000 Base - T Magnetics supplier LPJG4928DNL POE+ 1x1 Port RJ45 Connector With 1000 Base - T Magnetics supplier

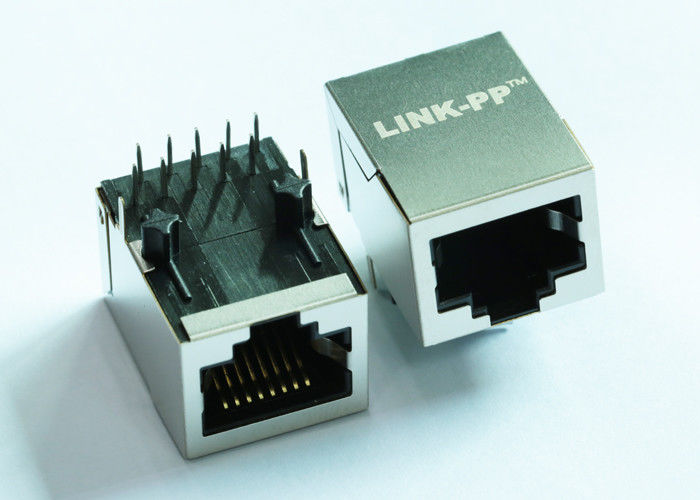

Large Image :  LPJG4928DNL POE+ 1x1 Port RJ45 Connector With 1000 Base - T Magnetics

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJG4928DNL

Payment & Shipping Terms:

Minimum Order Quantity: 50/500/5000
Price: Supportive
Packaging Details: Optional (60pcs/try);960/box
Delivery Time: Stock or 30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Bel Spec: LPJG4928DNL Ethernet: 10/100 Base-T
Samples: Available RJ45 Connector: 1X1 With POE+
File: PDF/3D/ISG/Stp/Step/Datasheet LED: Without

LPJG4928DNL POE+ 1x1 Port RJ45 Connector with 1000 Base - T Magnetics



Connector RJ45 Modular Jack with 1000 Base-T Integrated Magnetics & PoE+,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJG4928DNL
Application-Lan ETHERNET(PoE+)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option WITHOUT
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.50
Package Length (mm) 21.25
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

LPJG4928DNL POE+ 1x1 Port RJ45 Connector With 1000 Base - T Magnetics
