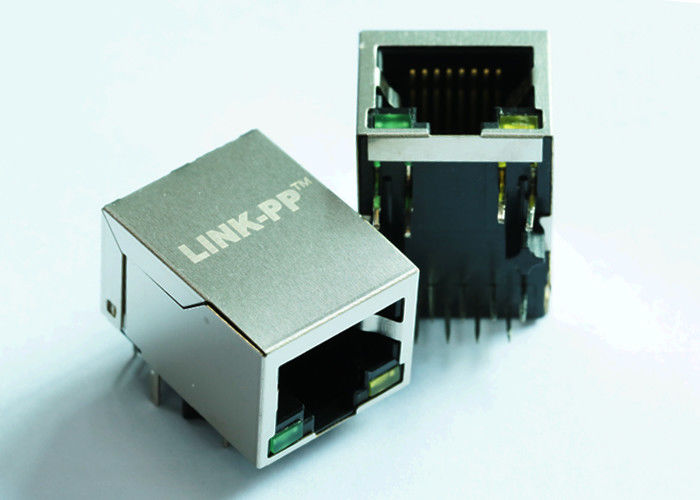

1x1 Port 1000BASE-T POE+ RJ45 Modular Jack With Transformer LPJG4928HENL

China 1x1 Port 1000BASE-T POE+ RJ45 Modular Jack With Transformer LPJG4928HENL supplier
1x1 Port 1000BASE-T POE+ RJ45 Modular Jack With Transformer LPJG4928HENL supplier 1x1 Port 1000BASE-T POE+ RJ45 Modular Jack With Transformer LPJG4928HENL supplier

Large Image :  1x1 Port 1000BASE-T POE+ RJ45 Modular Jack With Transformer LPJG4928HENL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJG4928HENL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Specification: LPJG4928HENL Ethernet: 1x1000Mbps
Mounting: R/A Shield Indicator: LED Flexible
Samples: Available File: PDF/3D/ISG/Stp/Step/Datasheet

1x1 Port 1000BASE-T POE+ RJ45 Modular Jack With Transformer LPJG4928HENL

  • 1000Base-TX Magnetic Rj45
  • 1X1 Tab-down,Shield With POE+
  • Right Angle RJ45 modular jack



Single Port Ethernet RJ45 Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
YDS Part Number LPJG4928HENL
Application-Lan ETHERNET(PoE+)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.30
Package Length (mm) 21.25
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 1000 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



1x1 Port 1000BASE-T POE+ RJ45 Modular Jack With Transformer LPJG4928HENL


Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,
2600 staff,
100% test
Flexible delivery time
