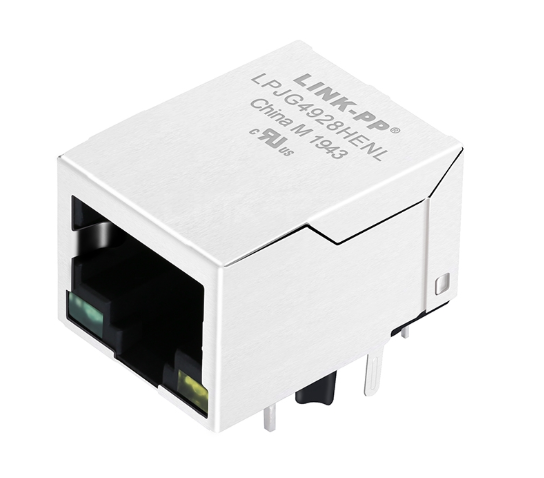

LPJG4928HENL 1000 Base-T PoE+ RJ45 Connector with LED 1x1 Port

LPJG4928HENL is a single-port 1000 Base-T RJ45 connector with integrated magnetics for PoE+ applications. Through-hole, right-angle, 10P8C, green/yellow LEDs, industrial temperature range.

Key Features of LPJG4928HENL PoE+ RJ45

1. Gigabit Performance: Supports 10/100/1000 Base-T Ethernet speeds for high-bandwidth applications.
2. Advanced PoE+ Capability: IEEE 802.3at compliant, handling up to 720mA @ 57VDC continuous current on PSE pins.
3. Industrial Reliability: Operates flawlessly in extreme temperatures from -40°C to +85°C.
4. Integrated Design: Built-in magnetics (1CT:1CT turn ratio) reduce PCB footprint and simplify routing.
5. Visual Status Indicators: Integrated Left (Green) and Right (Yellow) LEDs for easy network status monitoring.
6. Robust Construction:*Stainless steel EMI shield and UL94V-0 rated PBT housing ensure durability and safety.

Specifications of LPJG4928HENL RJ45 Connector with LED

1. General Product Specifications

2. Electrical Specifications (@25°C)

3. Material & Environmental Specifications

1. Operating Temperature: -40°C to +85°C (Industrial Grade)
2. Housing Material: Thermoplastic PBT + 30% Glass Fiber (UL94V-0 Rated)
3. Contact Material: Phosphor Bronze (C5210R-EH), 0.35mm thickness
4. Contact Plating: Minimum 6µ" Gold over mating area
5. Pin Material: Brass (C2680R-H), 0.35mm thickness
6. Wave Soldering Temp:** 265°C MAX for 5 seconds

LPJG4928HENL 1000 Base-T RJ45 Connector Datasheet

LPJG4928HENL LED Indicator Details

The LPJG4928HENL includes dual LED indicators to support intuitive visual status monitoring.

Left LED

• Color: Green
• Peak wavelength: 565nm
• Forward voltage: 1.8–2.6V @ 20mA
• Reverse current: 10µA max @ 5V

Right LED

• Color: Yellow
• Peak wavelength: 585nm
• Forward voltage: 1.8–2.6V @ 20mA
• Reverse current: 10µA max @ 5V

These LEDs help provide link, activity, or status visibility in Ethernet equipment designs.

Applications of PoE Magjack

The LPJG4928HENL is precision-engineered for telecommunications, networking hardware, and industrial communication equipment, including:

• SOHO Equipment: ADSL Modems, Routers, and Gateways.
• Enterprise Networking: Network Switches, Hubs, and PoE Injectors.
• Embedded Systems: LAN-on-Motherboard (LOM) designs.
• Industrial IoT:Smart building controllers and PoE+ powered IP cameras/access points.
