Product Details:
Payment & Shipping Terms:
|
| Specification: | HR891138C | Cross PN: | LPJG0805CNL |
|---|---|---|---|
| Ethernet: | 1x10/100Base-T | Samples: | Available |
| Manufacturer: | LINK-PP | File: | PDF/3D/ISG/Stp/Step/Datasheet |
| High Light: | modular jacks rj45,industrial rj45 connector |
||

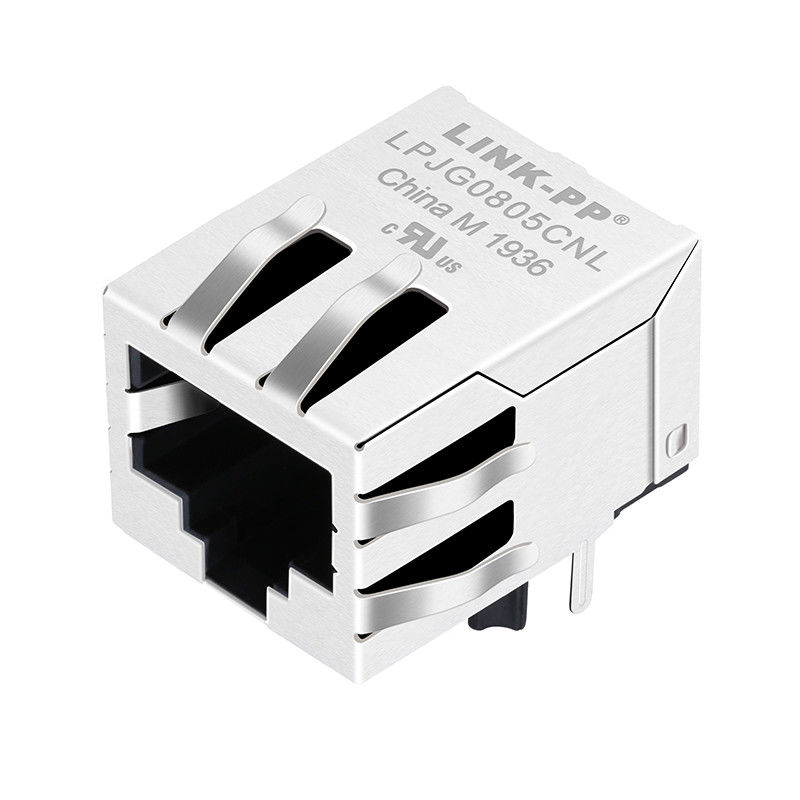

| Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJG0805CNL |
| Hanrun Part Number | HR891138C |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITHOUT LEDS |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 13.40 |
| Package Length (mm) | 21.30 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
