Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: HY911205C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
HY911205C |
Made In China: |
SM-LPJ26204AENL |
Application: |
10/100Base-TX NIC Applictation |
Mounting: |
Shielded W/LEDs |
Port: |
Dual |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Midcom PN: |
HY911205C |
Made In China: |
SM-LPJ26204AENL |
Application: |
10/100Base-TX NIC Applictation |
Mounting: |
Shielded W/LEDs |
Port: |
Dual |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

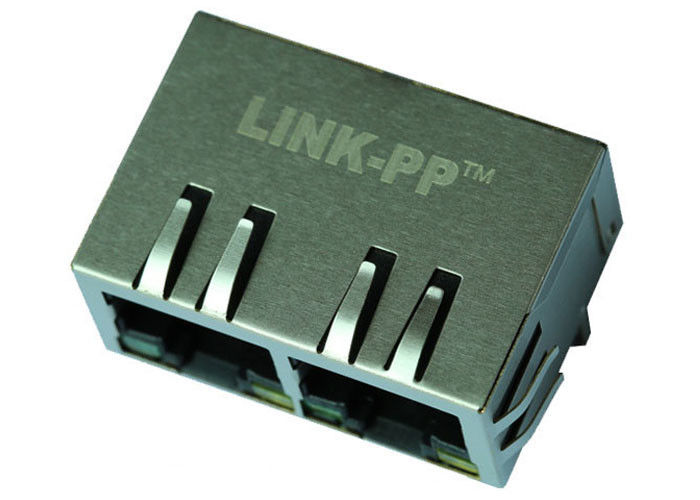

| Shielded 1x2 Port RJ45 Magjack Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ26204AENL |
| Part Number | HY911205C |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Green/Yellow LEDs |
| Latch | TAB Down |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.536 |
| Package Height (mm) | 13.61 |
| Package Length (Inches) | 0.841 |
| Package Length (mm) | 21.36 |
| Package Width (Inches) | 1.228 |
| Package Width (mm) | 31.18 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
