Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008,REACH
Model Number: HY911409B
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Specification: |
HY911409B |
Cross PN: |
LPJ46204AENL |
Ethernet: |
1x4 10/100 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Mouting: |
Thru-hole |
Samples: |
Available |
Specification: |
HY911409B |
Cross PN: |
LPJ46204AENL |
Ethernet: |
1x4 10/100 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Mouting: |
Thru-hole |
Samples: |
Available |

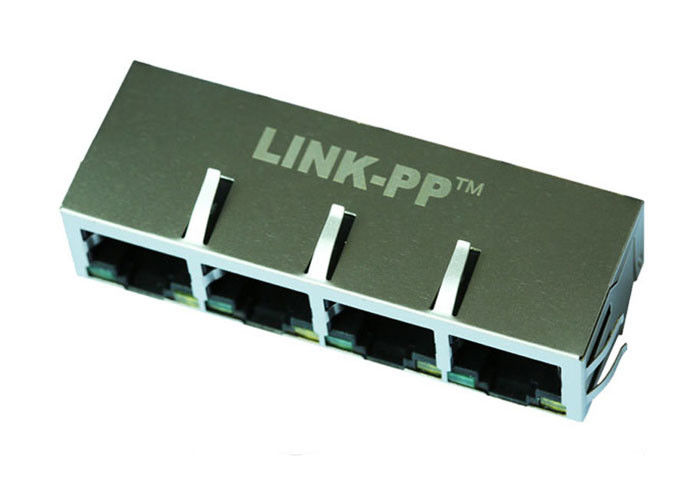

| 1x4 RJ45 Modular Jack with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ46204AENL |
| Part Number | HY911409B |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.533 |
| Package Height (mm) | 13.55 |
| Package Length (Inches) | 0.831 |
| Package Length (mm) | 21.10 |
| Package Width (Inches) | 2.328 |
| Package Width (mm) | 59.12 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
