Home ProductsPOE RJ45 Connector

85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL

China 85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL supplier
85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL supplier 85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL supplier

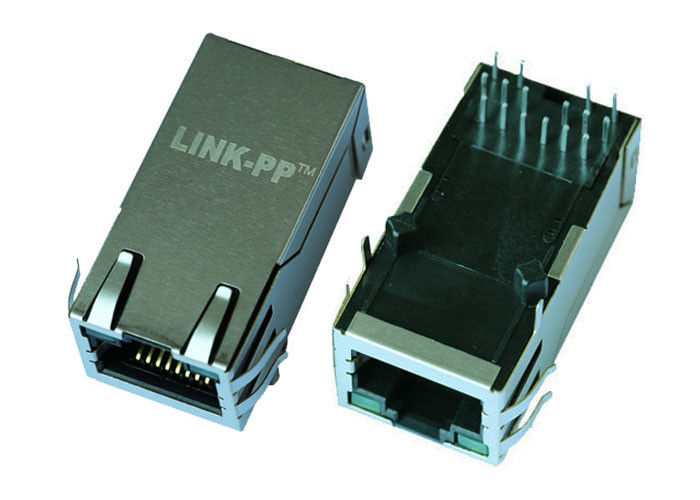

Large Image :  85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH,RoHS
Model Number: 85789-1001

Payment & Shipping Terms:

Minimum Order Quantity: 960
Price: Supportive
Packaging Details: 60PCS/Tray,16Trays=960PCS=37*30*30CM=9 KG/Carton
Delivery Time: 5 weeks Or Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: 85789-1001 Part No: LPJK2070AWNL
Orientation: 90° Angle (Right) Interface: POE+ 1x 1000Mbps Ethernet
Indicator: LED Flexible Samples: Available

85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL



Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics & PoE+,Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJK2070AWNL
Molex Part Number 85789-1001
Application-Lan ETHERNET(PoE+)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/GREEN
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 13.50
Package Length (mm) 32.50
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



85789-1001 32.5mm length RJ45 Connector With POE+ 1000Mbps LPJK2070AWNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: summer

Tel: +8618026686530

Send your inquiry directly to us (0 / 3000)
