LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

China LPJG0803GENL  RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246 supplier

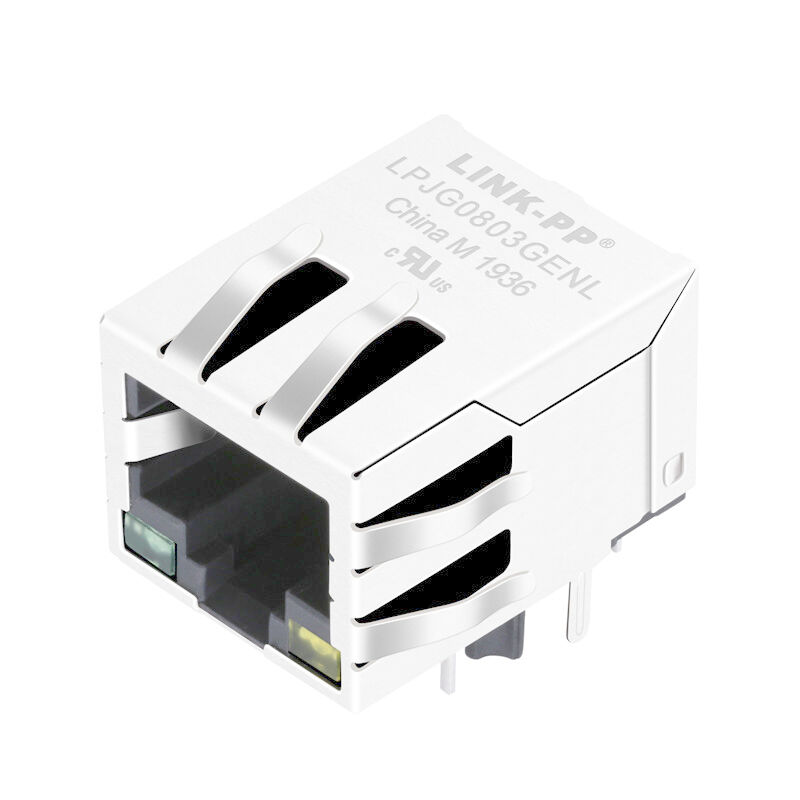

Large Image :  LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: DY9759-A551124-246

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Item: DY9759-A551124-246 Type: RJ45 Connector
TAB Direction: Down RoHS Compliant: Yes
Indicators: LED Colors Can Be Selected Suitable LAN PHY Spec.: 10/100 Base-T

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

1.10/100/1000 Base-T

2.1X1 Tab-down
3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack



LPJG0803GENL  RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246 LPJG0803GENL  RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

ELECTRICAL SPECFICATIONS @25℃


1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.3-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-13.5dB MIN @ 40MHz
-11.5dB MIN @ 50MHz
-10dB MIN @ 60-80MHz
5.Cross talk:
-40dB MIN @ 30MHz
-36dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-35dB MIN @ 30MHz
-32dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: 0℃ TO 70℃.

LPJG0803GENL  RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246





Applications:



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time
