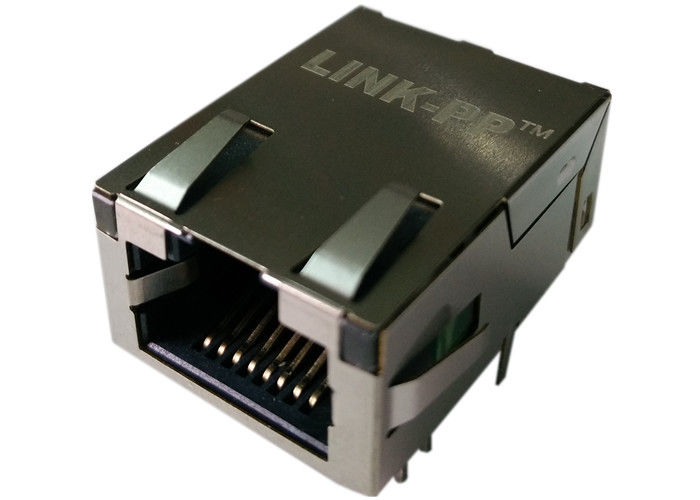

Low profile RJ-45 Jack LPJK7001CNL 10/100 Magnetics Connector No LEDs

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJK7001CNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.08-$1.79

Packaging Details: 60pcs/tray,or Reel Package

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 2800K-PCS/Month

Get Best Price
Highlight:

ultra low profile jack

,

low profile rj45 connector

Specifications:
LPJK7001CNL
Mechanical:
24.04x17.78x11.30mm
Schematic:
4 Coils,1CT:1CT
Ethernet:
1x 10/100Base
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LPJK7001CNL
Mechanical:
24.04x17.78x11.30mm
Schematic:
4 Coils,1CT:1CT
Ethernet:
1x 10/100Base
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
Low profile RJ-45 Jack LPJK7001CNL 10/100 Magnetics Connector No LEDs
Low profile RJ-45 Modular Jack LPJK7001CNL 10/100 Magnetics Connector

  • 1. 1X1 Tab-up LPJK7001CNL Without LEDs
  • 2. 10/100Base Modular Jacks
  • 3. Low profile RJ45 connector
  • 4. Dimension 24.04x17.78x11.30mm
  • 5. LED Models: LPJK7001AONL / LPJK7001AHNL

 Low profile RJ-45 Modular Jack , 100M RJ 45 PCB Connectors
LINK-PP Part Number: LPJK7001CNL
Speed: 10/100 Base-T
Number of Ports: SINGLE
Application-Lan: Ethernet(NoN PoE)
Latch: Up
PIN Type: THT Solder
Temperature: 0 TO + 70
Package Height (mm): 11.30
Package Length (mm): 24.04
Package Width (mm): 17.78
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Low profile RJ-45 Jack LPJK7001CNL 10/100 Magnetics Connector No LEDs 0

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,
100% test
Flexible delivery time
