Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

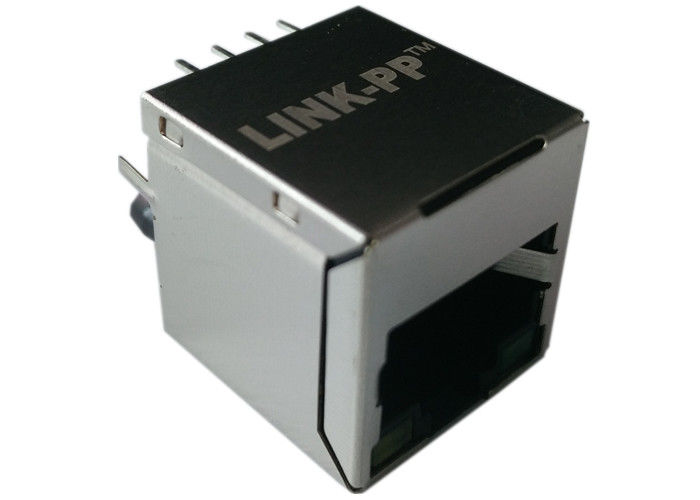

Model Number: LPJD0017BHNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Spec: |
LPJD0017BHNL |
Part No: |
LPJD0017BHNL |
Ethernet: |
1x10/100Mbps |
Turn Ratio: |
1:1 |
Indicator: |
LED Flexible |
Samples: |
Available |
Spec: |
LPJD0017BHNL |
Part No: |
LPJD0017BHNL |
Ethernet: |
1x10/100Mbps |
Turn Ratio: |
1:1 |
Indicator: |
LED Flexible |
Samples: |
Available |
| Electrical Specifications @25℃ 1.Turns Ratio: TX=1CT:1CT RX=1CT:1CT 2.Inductance: 350uH Min @100KHz,100mV,8mA DC Bias Current. 3.Insertion Loss: 0.1～100MHz:-1.0dB Max 4.Return Loss(dB Min): 1～30MHz:-18 40MHz:-16 50MHz:-14 60～80MHz:-12 5.Crosstalk(dB Min): 30MHz:-45 60MHz:-40 100MHz:-35 6.CMR:(dB Min): 30MHz:-35 60MHz:-30 100MHz:-25 7.Hipot: 1500Vrms 8.Operating Temperature: 0℃～70℃. |
|
|
|
