Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

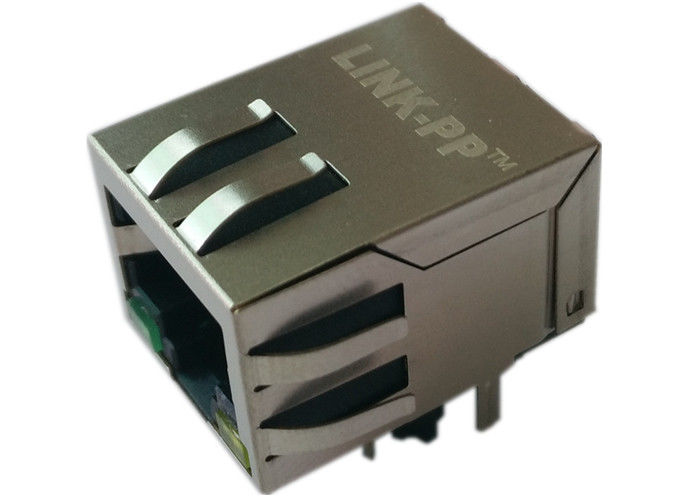

Model Number: LPJ4013EDNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
LPJ4013EDNL |
Part No: |
LPJ4013EDNL |
Ethernet: |
1x 10/100 M |
RoHS Compliant: |
Yes |
Indicator: |
LED Flexible |
Samples: |
Available |
Specification: |
LPJ4013EDNL |
Part No: |
LPJ4013EDNL |
Ethernet: |
1x 10/100 M |
RoHS Compliant: |
Yes |
Indicator: |
LED Flexible |
Samples: |
Available |
| ELECTRICAL SPECFICATIONS @25℃ 1.Turn Ratio(± 2%): TX=1:1 RX=1:1 2.Inductance OCL: 350uH MIN @100KHz/0.1V,8mA DC Bias 3.Insertion Loss: -1.0dB MAX @ 1-100MHz 4.Return Loss: -18dB MIN @ 1-30MHz -16dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz 5.Cross talk: -30dB MIN @ 1-100MHz 6.Common Mode Rejection: -30dB MIN @ 1-100MHz 7.Hipot Test: 1500Vrms MIN 8.Operating Temperature Range: -40℃ TO +85℃. |
|
|
|
