Model Number: LPJ4013EDNL
Document: LPJ4013EDNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part No: |
LPJ4013EDNL |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |
Part No: |
LPJ4013EDNL |
Number Of Ports: |
1X1 |
Latch: |
Down |
Data Rate: |
100Base-T |
PoE: |
Non |
LED Option: |
With |
EMl Tabs: |
With |
Mounting Type: |
THT |
Solder Type: |
Wave |
Operating Temperature Range: |
-40°C To +85°C |

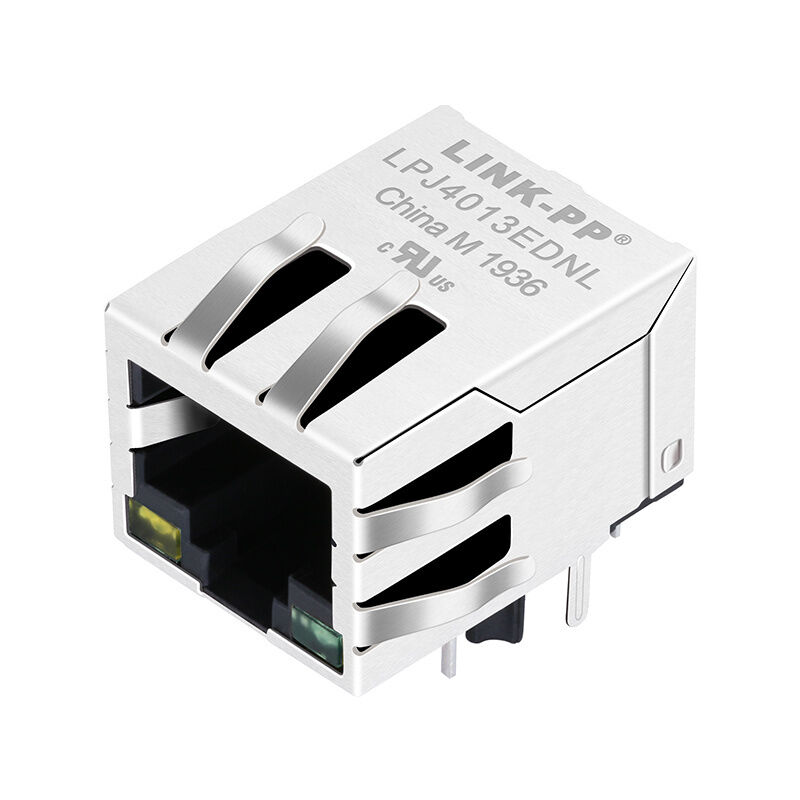

LPJ4013EDNL RJ45 connector with integrated magnetics, 10/100Base-T, LED indicators, EMI shielding, and -40°C to 85°C range. Ideal for industrial Ethernet.
| Parameter | Value |
|---|---|
| Number of Ports | 1×1 |
| Speed | 10Base-T / 100Base-TX |
| PoE Support | Non-PoE |
| Mounting Type | Through-Hole (THT) |
| Latch Type | Down |
| LED Option | Yellow / Green |
| EMI Shielding | Yes (Spring Finger + Tabs) |
| Operating Temp | -40°C to +85°C |
| Parameter | Specification |
|---|---|
| Turns Ratio | 1CT:1CT ±5% |
| OCL | ≥ 350µH @100KHz, 0.1V, 8mA DC Bias |
| Insertion Loss | ≤ -1.2 dB (1–100 MHz) |
| Return Loss | ≥ -16 dB (1–30 MHz) |
| ≥ -12 dB (30–60 MHz) | |
| ≥ -10 dB (60–80 MHz) | |
| ≥ -8 dB (80–100 MHz) | |
| Cross Talk | ≥ -30 dB (1–100 MHz) |
| Common Mode Rejection (CMR) | ≥ -30 dB (1–100 MHz) |
| Isolation (PHY to Line) | 1500 Vrms |
The LPJ4013EDNL RJ45 magnetic jack is a high-performance 10/100Base-T Ethernet connector designed for stable signal transmission, EMI suppression, and long-term reliability in demanding environments.
With integrated magnetics, dual LED indicators, and enhanced EMI shielding (spring finger design), this connector is ideal for engineers and OEMs developing industrial Ethernet devices, IoT systems, routers, and embedded networking equipment.
1. 10/100Base-T Compatibility
Supports Fast Ethernet applications with stable data transmission.
2. Integrated Magnetics (MagJack Design)
Reduces PCB complexity and improves signal integrity.
3. Dual LED Indicators (Yellow/Green)
Enables clear status monitoring for link and activity.
4. Enhanced EMI Shielding with Spring Finger
Minimizes electromagnetic interference for reliable operation.
5. Wide Operating Temperature (-40°C to +85°C)
Suitable for harsh industrial environments.
6.Through-Hole (THT) Mounting
Ensures strong mechanical stability for long lifecycle applications.
7. Latch Down Configuration
Secure cable retention in compact designs.
Integrated magnetics eliminate the need for external transformers, reducing layout complexity and BOM cost.
Carefully engineered magnetics ensure low insertion loss, strong return loss, and excellent EMI performance.
Wide temperature range and robust THT mounting make it ideal for mission-critical environments.
The spring finger shielding structure provides improved grounding and EMI suppression compared to standard RJ45 connectors.
