Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJK7436A98NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 2800K-PCS/Month
Part Number: |
LPJK7436A98NL |
LED: |
ORANGE&GREEN/YELLOW |
SPEED: |
1000 Base-T |
Temperature: |
-40 TO + 85 |
Sample: |
Free |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
LPJK7436A98NL |
LED: |
ORANGE&GREEN/YELLOW |
SPEED: |
1000 Base-T |
Temperature: |
-40 TO + 85 |
Sample: |
Free |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

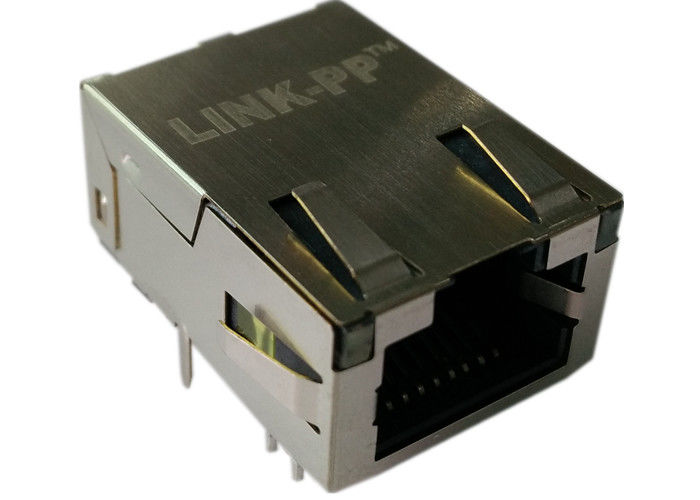

| Single Port Low Profile RJ45 Connector with 1000 Base-T Integrated Magnetics,ORANGE&GRREN/YELLOW LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJK7039AGNL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | ORANGE&GRREN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 11.30 |
| Package Length (mm) | 24.04 |
| Package Width (mm) | 16.85 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
•Delivery Time:2-3 Weeks After Orders
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
