LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics

LPJK7436A98NL Low-Profile RJ45 MagJack Overview

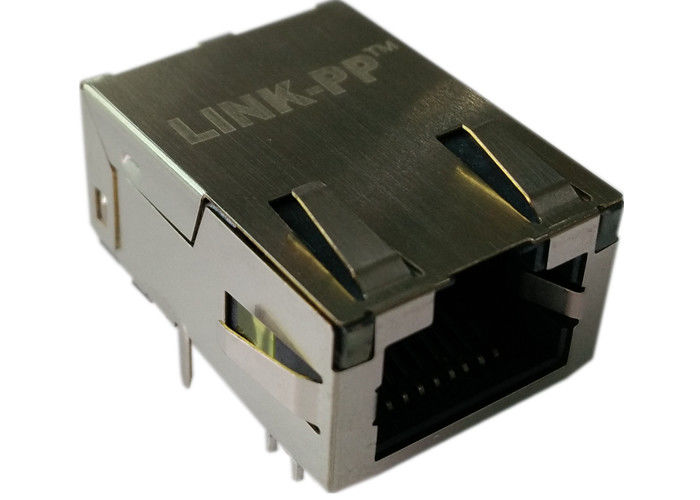

The LPJK7436A98NL Low-Profile RJ45 Connector engineered for high-density network applications where PCB space is at a premium. With an ultra-low package height of just 0.445 inches (11.30mm), this 1x1 side-entry jack delivers robust 1000 Base-T (Gigabit) Ethernet performance.

Designed with integrated magnetics to ensure optimal signal integrity and EMI shielding, this connector is rated for industrial operating temperatures (-40°C to +85°C). It features a "Tab Up" orientation, secure Through-Hole Technology (THT) wave solder mounting, and highly visible Orange&Green/Yellow LEDs for clear network status indication.

Key Features

• Connector Type: RJ45 Jack with Integrated Magnetics
• Port Configuration: 1x1
• Data Rate: 10/100/1000Base-T
• Latch Orientation: Tab Up
• PCB Mount Angle: Side Entry, 90° Angle
• Shielding: With EMI Tabs
• LED Option: Orange & Green/Yellow
• Mounting Type: Through-Hole Technology (THT)
• Solder Type: Wave Solder
• Operating Temperature: -40°C to +85°C
• PoE: Non-PoE
• Low-Profile Design: 11.30 mm height for compact system integration

Applications of RJ45 Connector with Magnetics

Because of its low-profile footprint and industrial temperature rating, the LPJK7436A98NL is the ideal RJ45 solution for:

• Slim-line Networking Equipment: Switches, routers, and gateways.
• Industrial PCs (IPC) & Embedded Systems: Motherboards requiring minimal Z-axis height.
• IoT Devices: Smart home hubs and industrial automation controllers.
• Telecommunications: Set-top boxes and network interface cards (NIC).

LPJK7436A98NL Low-Profile RJ45 Datasheet

Technical Specifications of LPJK7436A98NL Low-Profile RJ45 Connector

LPJK7436A98NL Frequently Asked Questions

If you are looking for a low-profile RJ45 connector with integrated magnetics for 1000Base-T Ethernet designs, the LPJK7436A98NL is a strong fit for compact, high-reliability networking applications.

1. What is the LPJK7436A98NL?

The LPJK7436A98NL is a low-profile RJ45 connector with integrated 1000Base-T magnetics, designed for Ethernet applications that require compact size and reliable performance.

2. Does the LPJK7436A98NL support Gigabit Ethernet?

Yes. It supports 10/100/1000Base-T connectivity, making it suitable for Gigabit Ethernet applications.

3. Is this connector suitable for PoE applications?

No. The LPJK7436A98NL is specified as Non-PoE.

4. What is the mounting style of this RJ45 connector?

It uses through-hole technology (THT) with a side-entry, 90° right-angle configuration.

5. Does the LPJK7436A98NL include LED indicators?

Yes. It comes with Orange & Green/Yellow LED options for status indication.
