LPJK7436CNL Low-Profile RJ45 Jack , 1000Base-T Ethernet Connector

China LPJK7436CNL Low-Profile RJ45 Jack , 1000Base-T Ethernet Connector supplier
LPJK7436CNL Low-Profile RJ45 Jack , 1000Base-T Ethernet Connector supplier LPJK7436CNL Low-Profile RJ45 Jack , 1000Base-T Ethernet Connector supplier

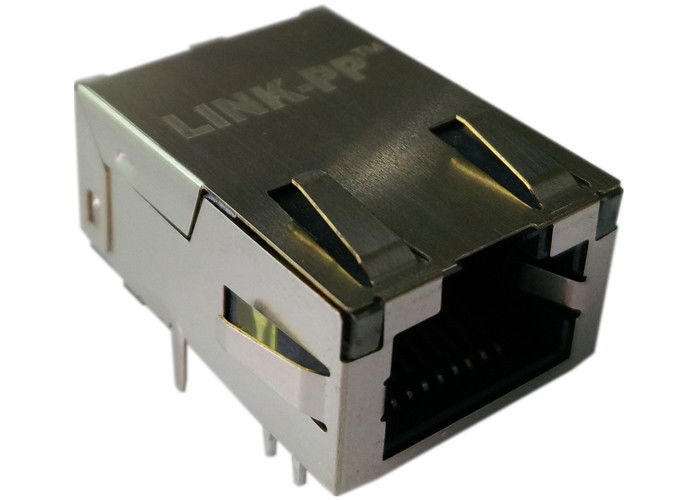

Large Image :  LPJK7436CNL Low-Profile RJ45 Jack , 1000Base-T Ethernet Connector

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJK7436CNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Part Number: LPJK7436CNL Ethernet: 1000Base-T Low-Profile
Latch: TAB UP Es Per Port: 8
Sample: Free File: PDF/3D/ISG/Stp/Step/Datasheet

LPJK7436CNL Low-Profile RJ45 Jack , 1000Base-T Ethernet Connector

  • 1.1X1 Low profile  modular Jack
  • 2.10/100/100base-T Magnetic Jack
  • 3.Shielded RJ45 Jack LINK-PP
  • 4.RJ45 Jack No LEDs LPJK7436CNL
  • 5.Tab-up RJ45 connector

1X1 Tab-up 10/100/1000M low profile RJ45 connector with dimension 16.85X24.13X11.30mm,  with leds.



Single Port Low Profile RJ45 Connector with 1000 Base-T Integrated Magnetics,Without LED,Tab Up,RoHS
LINK-PP Part Number LPJK7436CNL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 11.30
Package Length (mm) 24.04
Package Width (mm) 17.78
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
