Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ALAN-508
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Product Name: |
ALAN-508 |
Application: |
Lan Ethernet (PoE) |
Port: |
1x1,single,custom |
Samples: |
Available |
Speed: |
10/100M |
Package: |
Surface Mount |
Product Name: |
ALAN-508 |
Application: |
Lan Ethernet (PoE) |
Port: |
1x1,single,custom |
Samples: |
Available |
Speed: |
10/100M |
Package: |
Surface Mount |
1. Contact Termination Type : Surface Mount
2. 10 / 100 base-t TRANSFORMER Module With POE
3. Pin to pin compatible by LINK-PP LPXXXNL
4. Lan Isolation Transformer ALAN-508
5. dimension : 12.70X7.15X6.35MM
6. Files : PDF / datasheet / 3D / IGS / Step /Stp
| Profile Feature | Pb-Free Assembly |
| Average Ramp-Up Rate (Ts max to Tp) | 3°C /second max. |
| Preheat -Temperature Min (Ts min) -Temperature Max (Ts max) -Time (ts min to ts max) |
|
| 150°C 200°C 60-180 seconds |
|
| Time maintained above: | |
| -Temperature (TL) -Time (tL) |
217°C 60-150 seconds |
| Peak/Classification Temperature (Tp) | 245±5°C |
| Time within 5°C of actual Peak | 20-40 seconds |
| Temperature (tp) Ramp-Down Rate |
|
| 6°C /seconds max | |
| Time 25°C to Peak Temperature | 6 minutes max. |
Description:

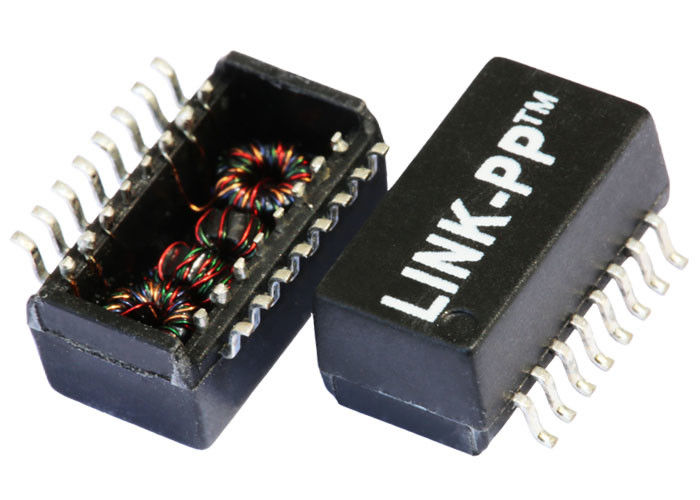

1X1 SMT 10/100M RJ45 Transformer Module with POE, dimension : 12.70X7.15X6.35MM
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
1100 staff,
100% test
Flexible delivery time
