Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RB1-216BNN1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3500K/month
Product Name: |
RB1-216BNN1A |
Cross Rf: |
LPJG0804HENL |
Port: |
1x1,single,custom |
Application: |
HUB, PC Card, Switch Etc |
Speed: |
1000 BASE |
OEM/ODM: |
Available |
Product Name: |
RB1-216BNN1A |
Cross Rf: |
LPJG0804HENL |
Port: |
1x1,single,custom |
Application: |
HUB, PC Card, Switch Etc |
Speed: |
1000 BASE |
OEM/ODM: |
Available |
1. Tab-up RJ45 Jack with LEDs
2. 1X1 Port RJ45 Jack
3. Gigabit RJ45 Modular Jack
4. IP Phone, xDSL modem RJ45 Jack
5. LPJG0804HENL PIN TO PIN RB1-216BNN1A
6. dimension: 15.93X21.25X13.30MM
Description:

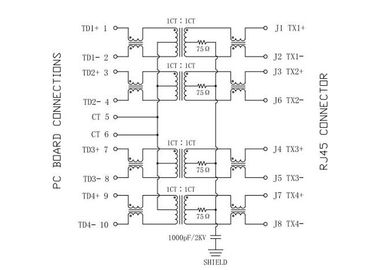

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(± 2%):
Pri: Sec=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.3-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-13.5dB MIN @ 40MHz
-11.5dB MIN @ 50MHz
-10dB MIN @ 60-80MHz
5.Cross talk:
-40dB MIN @ 30MHz
-36dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-35dB MIN @ 30MHz
-32dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃
| Emitting Color | λp(nm) | VF@IF=20mA | IR @VR=5V |
| Green | 565 | 1.8~2.6V | 10μA max |
| Yellow | 585 | 1.8~2.6V | 10μA max |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
1100 staff,
100% test
Flexible delivery time
