HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL

HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL
HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL

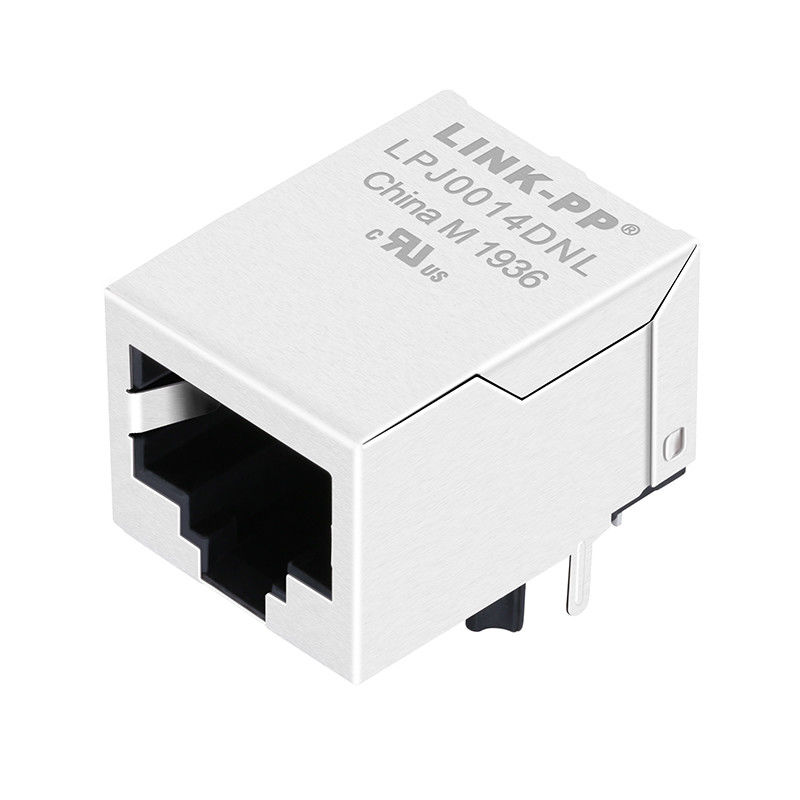

Large Image :  HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR901101A
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specifications: HR901101A P/N: LPJ0014DNL
Mechanical: 21.30x15.90x13.30mm Schematic: 4 Coils, 1CT:1CT,1CT:1CT
LEDs: None Samples: Available
High Light:

modular jacks rj45

,

industrial rj45 connector

HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL

  1. 10/100 Base-T
  2. 1X1 Tab-down LPJ0014DNL
  3. Through hole RJ45 modular jack
  4. 21.3mm length RJ45 Magjack

10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL 100% Cross Hanrun HR901101A
LINK-PP Part Number LPJ0014DNL
Hanrun Part Number HR901101A
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.523
Package Height (mm) 13.30
Package Length (Inches) 0.836
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDEREXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 Base-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
LINK-PP cross other Hanrun parts for reference
LINK-PP Part Number Hanrun Part Number
LPJ26204ABNL HR911205
LPJK2001AGNL HR851140A
LPJK0071A53NL HY911180A
LPJG26806ABNL HR911261C

HR901101A 10/100base-t Female 1X1 RJ45 Connector Without LEDs LPJ0014DNL 0


Product Warranty



1. Guarantees 100% compliance CE,Rohs

2. Lenth:Custom.

3. Molded-strain relief construction for flexible movement, durability, and fit.

4. Reduces cross talk and interference with aluminum undermold contacts



Packaging & Shipping



1. any items want to order. Please contact us. And confirm the order details and lead time.

2. Terms of Shipment:

Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed.

3. Shipping Companies: We support shipment by "HK post" "China post" "EMS" "DHL" "UPS" "FEDEX" "TNT" "SF"”, if you have your own express account that's would be very simple. If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help

4.Packing could be PE bag or Blister Card, depend on what product you ordered



Our Services



1. OEM/EDM service

2. Fast delivery

3. Most of the payment are accepted

4. Design and produce goods according to clinet's requirement.


Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,
100% test
Flexible delivery time
