P/N: |
JXD2-0015NL |
Data Rate: |
10/100/1000BASE-T |
Primary Inductance: |
≥350 μH (at 100 KHz) |
Isolation: |
≥2250 VDC |
LEDs: |
Left (Yellow), Right (Green) |
PACKAGE WIDTH: |
16.00 Mm |
PACKAGE LENGTH: |
16.82 Mm |
PACKAGE HEIGHT: |
16.90 Mm |
P/N: |
JXD2-0015NL |
Data Rate: |
10/100/1000BASE-T |
Primary Inductance: |
≥350 μH (at 100 KHz) |
Isolation: |
≥2250 VDC |
LEDs: |
Left (Yellow), Right (Green) |
PACKAGE WIDTH: |
16.00 Mm |
PACKAGE LENGTH: |
16.82 Mm |
PACKAGE HEIGHT: |
16.90 Mm |

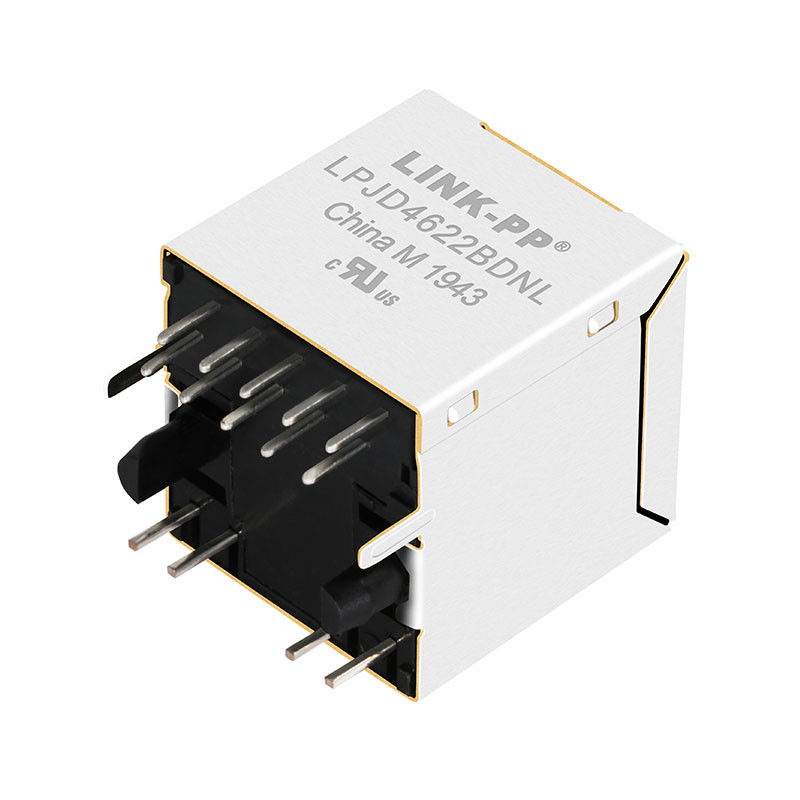

The JXD2-0015NL Vertical RJ45 connector (LPJD4622BDNL) is a premium, high-performance network interface designed for space-constrained top-entry PCB applications. Engineered for robust networking, this 1-port (1x1) through-hole (THT) jack integrates Gigabit magnetics to support 10/100/1000 Base-T speeds with AutoMDIX capabilities.
Built to withstand demanding environments, the JXD2-0015NL features an industrial operating temperature range of **-40°C to +85°C**, superior 30 micro-inch gold contact plating, and heavy-duty brass shielding. It is the ideal choice for industrial routers, IoT gateways, embedded motherboards, and telecommunications equipment.
| Category | Parameter | Specification |
|---|---|---|
| Mechanical & Physical Properties | Part Number | JXD2-0015NL |
| Package / Mounting | Through-Hole Technology (THT), Top Entry | |
| Dimensions (W × L × H) | 16.00 mm × 16.82 mm × 16.90 mm | |
| Housing Material | Thermoplastic, UL94 V-0 Flame Retardant | |
| Shield Material | Brass with Nickel Plating | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Selective Gold Plating, 30 μin Min. | |
| Number of Ports | 1 × 1 | |
| PoE Rating | Non-PoE | |
| Electrical & Magnetic Characteristics | Ethernet Standard | 10/100/1000Base-T, Auto-MDIX |
| Turn Ratio (@100kHz) | 1:1 ±5% (All Four Pairs) | |
| Primary Inductance (OCL) | ≥350 μH @100kHz, 0.1V, 8mA DC Bias | |
| DC Resistance | ≤1.2 Ω | |
| Insertion Loss | 1–100MHz: ≤ -1.0dB100–125MHz: ≤ -1.2dB | |
| Return Loss | 1–40MHz: ≥ -16dB40–60MHz: ≥ -12dB60–80MHz: ≥ -10dB80–100MHz: ≥ -8dB | |
| Cross Talk (1–100MHz) | ≥ -30dB | |
| Common Mode Attenuation (1–100MHz) | ≥ -30dB | |
| Isolation Voltage | 2250VDC (PHY Side to Line Side) | |
| LED Specifications | Left LED (J8 Side) | Yellow |
| Wavelength | 590nm | |
| Forward Voltage | 2.1V Typ. / 2.5V Max. | |
| Right LED (J1 Side) | Green | |
| Wavelength | 565nm | |
| Forward Voltage | 2.2V Typ. / 2.4V Max. | |
| Test Condition | 20mA Forward Current | |
| Environmental & Soldering Limits | Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C | |
| Recommended Wave Soldering | 260°C Peak, 10 Seconds Max. | |
| Compliance & Standards | RoHS Compliance | Yes (RoHS-5) |
| Connector Standard | FCC Part 68 Compliant RJ45 Jack | |
| Recommended Installation | Suggested Panel Cutout | ≥16.35 mm (W) × ≥17.20 mm (H) |
| PCB Layout | Through-hole footprint with shield tabs and keep-out area |
This vertical RJ45 connector is ideal for space-constrained Ethernet applications. Typical uses include industrial and consumer network devices such as mini-switches, routers, IP cameras, access points, and embedded networking modules. The top-entry design simplifies cable routing in tight enclosures and rugged boards, while the integrated magnetics and shielding ensure high signal quality and EMI performance. It provides a professional, reliable interface for Gigabit Ethernet in server, router, and industrial control hardware.
Vertical RJ45 connectors (top-entry RJ45 jacks) are designed for PCB applications where space is limited and the Ethernet cable plugs in from above. This single-port jack integrates the Ethernet magnetics (1:1 transformer) and dual LEDs for status indication, supporting IEEE 802.3 10/100/1000Base-T (Gigabit Ethernet) networks. These connectors are common in compact routers, switches, access points, and industrial controllers where board area is constrained but vertical clearance is available. The example below shows a typical vertical 8P8C RJ45 connector with top-entry orientation.
The JXD2-0015NL is a single-port vertical RJ45 connector with integrated magnetics designed for 10/100/1000Base-T Ethernet applications. It is commonly used in routers, switches, industrial controllers, access points, and embedded networking equipment.
Yes. This connector supports 1000Base-T Gigabit Ethernet and is also suitable for 10/100Base-T backward-compatible applications.
Yes. The JXD2-0015NL includes built-in magnetic components, which help simplify PCB design, improve signal integrity, and support Ethernet isolation requirements.
It uses Through-Hole Technology (THT) with a vertical top-entry orientation, making it a good choice for compact designs where the cable plugs in from above the PCB.
Yes. The connector is designed for 10/100/1000Base-T with Auto-MDIX, helping the network port automatically adjust for straight-through or crossover cable connections.
This connector includes dual LEDs: a yellow LED on the J8 side and a green LED on the J1 side. These LEDs are typically used for link and activity indication.
No. The product is rated as Non-PoE, so it is not intended for Power over Ethernet applications.
The operating temperature range is -40°C to +85°C, which makes it suitable for industrial and commercial environments.
The contact mating area is plated with 30 micro-inch gold, which helps improve conductivity and long-term contact reliability.
Yes. It is RoHS compliant and meets environmental requirements for lead-restricted manufacturing.
The connector measures 16.00 mm (W) × 16.82 mm (L) × 16.90 mm (H), making it compact enough for space-conscious PCB layouts.
It is typically installed on Ethernet-enabled PCBs that require a vertical RJ45 port with integrated magnetics and LED indicators, especially in network and industrial equipment.
